AC41 Active Antenna Combiner for IEM Transmitters Inc NT3-1 PSU

« return to previous page

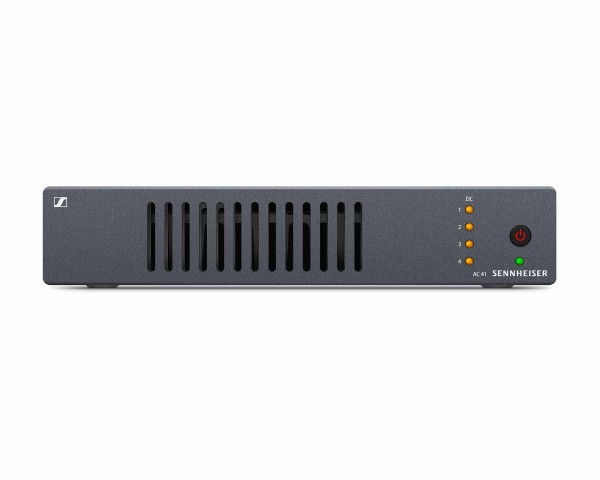

Sennheiser AC41 Active Antenna Combiner for IEM Transmitters Inc NT3-1 PSU - Main Image
Sennheiser AC41 Active Antenna Combiner for IEM Transmitters Inc NT3-1 PSU - Image 1
Sennheiser AC41 Active Antenna Combiner for IEM Transmitters Inc NT3-1 PSU - Image 2
Price:
RRP: £838.80 inc VAT
Code:
SENAC41
Manufacturer Code:
508295
Brand:
Sennheiser

Quantity required:

Main Features

  • AC41 Active Antenna Combiner
  • Up to 4 wireless stereo transmitters using one antenna
  • Power supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4
  • Compatible with G4 and G3 systems
  • Can be rack-mounted in half of a 1U space
  • Dark grey finish
Share:

AC41 Active Antenna Combiner for IEM Txmitters c/w NT3-1 PSU

Active antenna combiner for evolution wireless G4 systems. The AC 41 operates up to four wireless stereo transmitters from the ew series using one shared antenna. Power is supplied to the SR IEM G4 transmitters over the BNC cables via NT 3-1 power supply (included with the AC 41), making separate power supplies for the transmitters obsolete.

Product Features

  • AC41 Active Antenna Combiner
  • Up to 4 wireless stereo transmitters using one antenna
  • Power supply via BNC cables ensures efficient powering, no need for additional power supply units for the SR IEM G4
  • Compatible with G4 and G3 systems
  • Can be rack-mounted in half of a 1U space
  • Dark grey finish

Product Specifications

General

  • Frequency range:
    • 470 - 870 MHz
    • 470 - 608 MHz
  • Impedance: 50 Ω
  • Power consumption: max. 3.4 A (with connected transmitters)
  • Storage temperature: -20 °C to +70 °C (-4 °F to 158 °F)
  • Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
  • Power supply:
    • 13.8 V DC (with tabletop power supply unit NT 3-1)
    • 11.4 V DC (protected against reverse supply), 350 mA
  • RF input: max. 30 mW per input
  • Transmission loss: 0 dB (±1 dB)
  • Operating relative humidity: 5 to 95 %

Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 168mm
  • Weight: 1470g

What's in the Box?

  • 1x Active antenna splitter (470-870 MHz EU & UK / 470 - 608 MHz US)
  • 1x NT 3-1 power supply with either EU, UK, US adapters
  • 4x BNC interconnect cables

Product Downloads
