CM30DTD 4.25" 2-Way Enclosed Thin Edge Ceiling Speaker 100V

« return to previous page

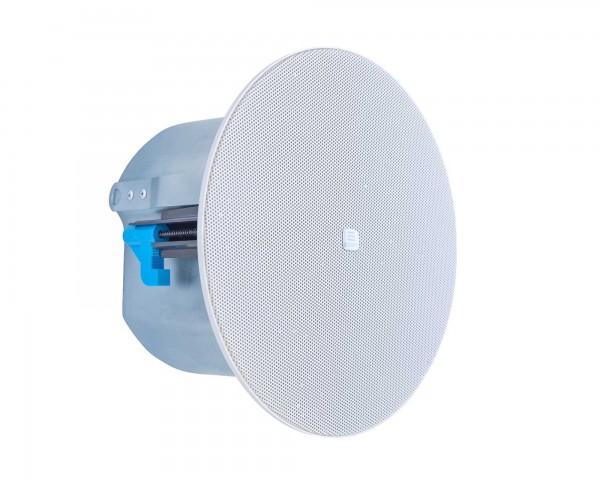

Apart CM30DTD 4.25 2-Way Enclosed Thin Edge Ceiling Speaker 100V - Main Image
Apart CM30DTD 4.25 2-Way Enclosed Thin Edge Ceiling Speaker 100V - Image 1
Apart CM30DTD 4.25 2-Way Enclosed Thin Edge Ceiling Speaker 100V - Image 2
Apart CM30DTD 4.25 2-Way Enclosed Thin Edge Ceiling Speaker 100V - Image 3
Apart CM30DTD 4.25 2-Way Enclosed Thin Edge Ceiling Speaker 100V - Image 4
Price:
RRP: £172.80 inc VAT
Code:
APACM30DTD
Manufacturer Code:
911.0632.900
Brand:
Apart

Quantity required:

Main Features

  • CM30DTD APART Thin Edge Ceiling Speaker
  • Controlled voice and sound performance
  • Suitable for any kind of ceiling structure
  • Ideal for the reproduction of dynamic background music
  • Power tapping's can be selected by a handy 70/100 volt rotary
  • White finish
Share:

CM30DTD White 4.25" 2-Way 70/100V Thin Edge Ceiling Speaker

CM30DTD is a very performant two-way built-in design loudspeaker with sealed back can and bass reflex port offering a controlled voice and sound performance for any kind of ceiling structure. The loudspeaker is ideal for the reproduction of dynamic background music and can be combined with other models in the range. The different power tapping’s can be selected by a handy 70/100 volt rotary on the front.

The CM30DTD is easy to install due to its solid and installer friendly cable management and Apart loudspeaker clamps. The thin edge grille and integrated neodymium magnets will guarantee an easy, smooth and elegant integration in every environment.

Product Features

  • CM30DTD APART Thin Edge Ceiling Speaker
  • Controlled voice and sound performance
  • Suitable for any kind of ceiling structure
  • Ideal for the reproduction of dynamic background music
  • Power tapping's can be selected by a handy 70/100 volt rotary
  • White finish

Product Specifications

General

  • Loudspeaker system: 2-way
  • Woofer size: 4.25 inch
  • Woofer cone material: polypropylene
  • Tweeter size: 1 inch
  • Mounting system: 2 screws
  • 100V transformer power taps: 30 - 15 - 7.5 - 3.75 watts
  • 70V transformer power taps: 30 - 15 - 7.5 - 3.75 - 1.75 watts
  • Impedance: 16 ohms
  • Low impedance dynamic power: 80 watts
  • Low impedance RMS power: 50 watts
  • SPL 1W/1m: 88 dB
  • Max SPL 1m: 108 dB
  • Frequency response: 75 - 20K Hz
  • Main construction material: ABS plastic
  • Grille main material: steel
  • IP rating: indoor use only
  • Applicable low impedance: yes
  • Applicable in 100V: yes
  • Horizontal dispersion angle 1000 Hz: 180°
  • Vertical dispersion angle 1000 Hz: 180°

Physical & Dimensions

  • Outside diameter: 223mm
  • Depth: 131mm
  • Cutout: 193mm
  • Installation grip range: 3 - 65mm
