CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54

« return to previous page

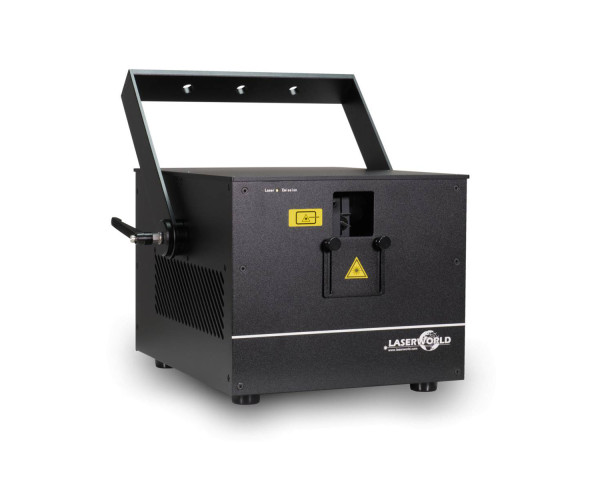

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Main Image

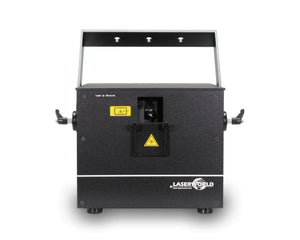

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 1

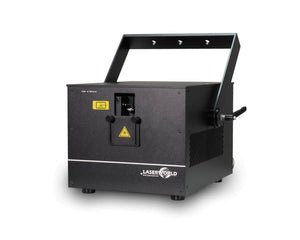

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 2

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 3

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 4

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 5

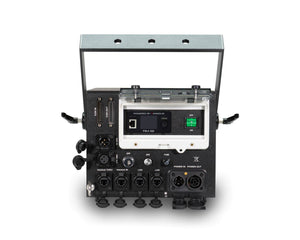

Laserworld CS-12.000RGB FB4 12000mW RGB Laser Pangolin FB4 30kpps IP54 - Image 6

Price:: RRP: £3,714.17 inc VAT
Code:: LASCS12000RGBFB4
Manufacturer Code:: 7640144996062FB4
Brand:: Laserworld

Main Features

12'000 mWRGB pure diode laser system
Pangolin FB4 interface
DMX / ArtNet controllable
Computer controllable via FB4 interface (requires QuickShow or BEYOND software)
Basic graphics capability - 30 kpps @ 8° scanners
IP54 enclosure

READ MORE PRODUCT DETAILSThe Laserworld CS-12.000RGB FB4 has graphic-capable scanners, with max. 30 kpps @ 8° speed and up to 40° scanning angle. Via the internal FB4 interface, the Laserworld CS-12.000RGB FB4 offers various control options, including DMX, ArtNet as well as direct computer control via network (QuickShow software or BEYOND software required).

The Laserworld CS-12.000RGB FB4 is an analogue modulated, full-colour RGB diode laser system with a guaranteed output power of 12'000 mW. The red laser source has an output power of 3'000 mW / 638 nm, the green of 3'000 mW / 520 nm and the royal-blue laser source has an output power of 6'000 mW / 450 nm. The diode laser sources provide strong laser beams. The projector has good beam specifications with a beam diameter of approximately 5 mm and a beam divergence of 1.2 mrad. The galvo system has a scan speed of up to 30 kpps @ 8°.

There is no air circulation in the optical area, the temperature is regulated via the separate heat sink section. This reduces maintenance and cleaning work to a minimum. The pre-stored effects and animations (from QuickShow - BEYOND) can be called up via DMX / ArtNet and adjusted live in colour, position or with additional effects. The Laserworld CS-12.000RGB FB4 also offers direct computer control via Pangolin QuickShow or BEYOND. This allows you to project your own or pre-programmed laser shows, logos, texts or your own graphics and animations.

The Laserworld CS-12.000RGB FB4 show laser projector comes with a compact housing that is lightweight and has a stable 360° bracket. The bracket allows various mounting positions: both hanging and standing installations are possible - ideal for mobile DJs and temporary laser shows, but also for fixed installations on a truss or on the ceiling.

The Laserworld CS-12.000RGB FB4 is ideal for semi-professional applications and is perfect for medium to large clubs and discotheques as well as for smaller festivals or stages and in any other party location.
