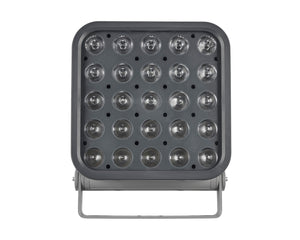

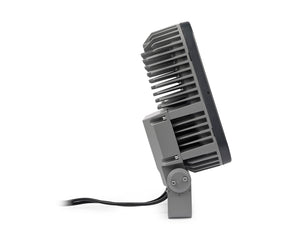

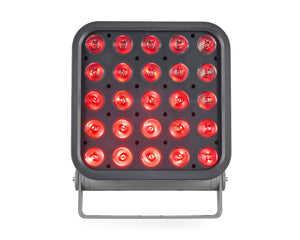

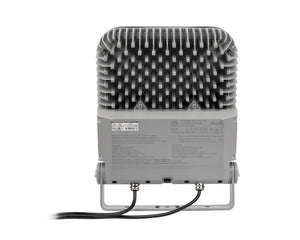

Exterior Wash Pro XL QUAD 25xRGBW LEDs Aluminium IP66 Grey

Product Features

• Logic family of four sizes and lumen packages (S, M, L, XL)
• Compact and slim design
• Superior colour consistency based on factory calibration
• Colour boost for bright saturated and mixed colours
• Dedicated colour temperature control channel
• Narrow beam-angle using high-power RGBW LEDs
• Optional baffle snoot
• Externally mounted micro lens diffusers
• RDM and DMX control
• Local diagnostics and focusing via magnetic sensor
• Power and DMX IN/OUT pre-mounted cables
• Optional Hybrid IN/Out cable solution
• Fully weatherised housing (IP66, IK08 and C-5 High corrosion rating)
• Shipped in FSC certified carboard packaging
• 5-year warranty

Product Specifications

Dynamic Effects

• Intensity:  0 - 100 %
• Colour mixing:  RGB + CTC (Colour Temperature Control)
• Colour temperature control:  1000 K - 12500K in 50K steps

Control and Programming

• Control systems:  DMX, RDM
• User interface:  Magnetic sensor for local diagnostics and focusing
• Stand-alone control:  Up to 20 scenes with individual fade/hold times
• Control resolution:  8-bit DMX control of each colour
• Dimmer Resolution:  16-bit DMX control of intensity
• DMX channels:  6/3/7/4 (Standard/Basic/Extended/Raw)
• DMX compliance:  USITT DMX512/1990
• RDM compliance:  ANSI/ESTA E1.20
• DMX/RDM Transceiver:  Galvanic-isolated RS-485
• Firmware update:  Serial upload via DMX link

Optics

• Light source:  25 x high-power RGBW LEDs
• Minimum LED lifetime:  100 000 hours (to > 70% luminous output)*
• LED manufacturer:  Osram
• Binning:  Tight colour and flux binning
• Calibration:  Full Gamut Colour Calibration (1 step MacAdam ellipse)
• *Figure obtained under manufacturer's test conditions at Ta = 25° C.

Beam Angle Options

• Native beam angle:  8°
• Narrow micro lens:  11°
• Medium micro lens:  15°
• Wide micro lens:  30°
• Very Wide micro lens:  50°
• Asymmetric micro lens:  8° x 50°

Photometric Data

• CRI (Colour Rendering Index) :  > 70
• CCT:  1000K - 12500K (Default 4000K)

Luminous Output*:

• Full:  10700 lm
• Red:  3200 lm
• Green:  7300 lm
• Blue:  2800 lm
  • * All Photometric Data measured in steady state (30 minutes warm-up time) at 25 °C ambient.

Installation

• Mounting:  Adjustable bracket
• Orientation:  Any
• Minimum distance to illuminated surfaces:  0.4 m (1.3 ft.)

Connections

• Power connection:  2 m (6.5 ft.) cable tail open ended
• Power input cable type, EU models:  H07RN-F 3G 1.0 mm², 450/750V, VDE
• Power input cable type, US models:  PVC SJTW 3 x 1.31 mm² (16AWG) 105° C 300 V VW-1
• Data connection:  2 m (6.5 ft.) open ended 6-conductor combined input + output cable tail
• Hybrid power/data cables (in & thru) 8-pin custom connectors available on request

Electrical

• AC power:  100 - 240 / 277 V nominal, 50/60 Hz
• Power supply unit:  Auto-ranging electronic switch-mode
• Typical half-cycle RMS inrush current:  14 A
• Surge protection:  4 KV
• Max earth leakage:  0.5 mA
• Power factor:  0.99 @110 V / 120 V, 0.96 @208 V / 230V, 0.90 @277 V
• Max current draw:  2.50 A @100 V, 2.1 A @120 V, 1.1 A @230 V, 0.90 A @ 277 V

Power Consumption

• Maximum:  250 W (reduced mode 200W)*
• Idle:  4.0 W*
  • * Measurements made at nominal voltage. Allow for a deviation of +/- 10%. Idle:  all LEDs at zero intensity

Thermal

• Cooling:  Convection
• Total heat dissipation (calculated, +/- 10%):  853 BTU/hr
• Maximum ambient temperature:  45° C (113° F)*
• Minimum ambient temperature:  -30° C (-22° F)**
  • *Above this temperature, the fixture regulates output to protect from overheating.
  • **Power must be maintained below -20° C (-4° F)

Environmental

• RoHS:  Compliant
• REACH:  Compliant
• WEEE:  Compliant
• Proposition 65:  Compliant
• Efficacy (max output):  43 lm/W
• LWR*:  605 lm/kg (274 lm/lb)*
  • *LWR = Lumen-to-Weight Ratio
• Packaging:  FSC certified cardboard inlay and outer box

Construction

• Housing:  Cast Aluminium
• Colour:  Traffic grey RAL 7042 - other colours available on request
• Surface treatment:  Anodized and electrostatic powder-coated
• Protection rating:  IP66
• Effective Projected Area (EPA):  0.149 m² / 0.180m²
• Impact resistance:  IK08
• Corrosion resistance:  C5 High (ISO 12944-6)
• Vibration resistance:  1.0g, Sinusoidal (IEC 60068-2-6), 0,7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31)

Physical & Dimensions

• Length:  175 mm (6.89 inch.)
• Width:  351 mm (13.82 in.)
• Height:  438 mm (11.93 in.)
• Weight:  17.7 kg (39.0 lbs)
