Intimidator Scan 360 Compact LED 100W Scanner

« return to previous page

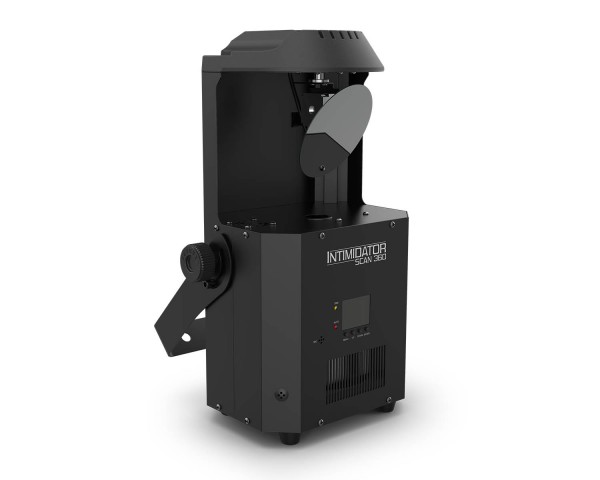

CHAUVET DJ Intimidator Scan 360 Compact LED 100W Scanner - Main Image

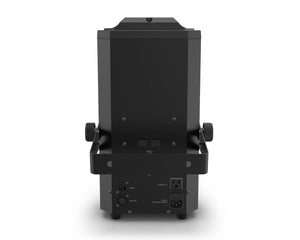

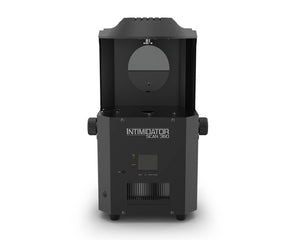

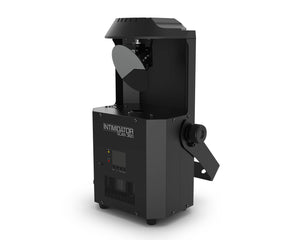

CHAUVET DJ Intimidator Scan 360 Compact LED 100W Scanner - Image 1
CHAUVET DJ Intimidator Scan 360 Compact LED 100W Scanner - Image 2
CHAUVET DJ Intimidator Scan 360 Compact LED 100W Scanner - Image 3
CHAUVET DJ Intimidator Scan 360 Compact LED 100W Scanner - Image 4
Price:
RRP: £510.00 inc VAT
Code:
CHAISC360
Manufacturer Code:
INTIMSCAN360
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Feature-packed scanner fitted with a 100 W LED designed for mobile performances
  • Project crisp gobos from nearly any distance with the motorised focus
  • Split the beam and cover larger areas with the crisp, 3-facet rotating prism
  • Convenient, wireless non-DMX control using the optional IRC-6 remote
  • Set, save, and recall 1 scene manually, directly from the full-colour LCD display
  • Achieve flicker-free video operation with high-frequency LED dimming
Share:

Intimidator Scan 360 Compact LED 100W Scanner

Razor-sharp and whip-fast beams to dazzle dance floors are at hand with Intimidator Scan 360, a feature-packed scanner fitted with a 100 W LED designed for mobile performances. Intimidator Scan 360 packs a crisp, 3-facet rotating prism to split the beam and cover large areas. Motorized focus lets you project crisp gobos from nearly any distance. Intimidator Scan 360 is great for camera work featuring high-frequency LED dimming for flicker-free video operation. Set, save, and recall 1 scene manually directly from the full-colour LCD display. Convenient, wireless, non-DMX control is available using the optional IRC-6 remote.

Product Features

  • Feature-packed scanner fitted with a 100 W LED designed for mobile performances
  • Project crisp gobos from nearly any distance with the motorised focus
  • Split the beam and cover larger areas with the crisp, 3-facet rotating prism
  • Convenient, wireless non-DMX control using the optional IRC-6 remote
  • Set, save, and recall 1 scene manually, directly from the full-colour LCD display
  • Achieve flicker-free video operation with high-frequency LED dimming
  • Save time running cables and extension cords by power linking multiple units

Product Specifications

General

  • DMX Channels: 8 or 14
  • DMX Connectors: 3-pin XLR
  • Pan and Tilt: 172°/39°
  • Colours: 8 + white, split colours, continuous scroll at variable speeds
  • Gobos: 7 + open (6 metal, 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source: 1 LED (white) 100 W, (4.2 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle: 21°
  • Illuminance: 4,050 lux @ 2 m
  • Power Linking: 4 units @ 120 V; 7 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 147 W, 1.9 A @ 120 V, 60 Hz
  • Approvals: CE
  • Prism: 3-facet round, rotation at variable speeds
  • Power and Current: 143 W, 1.1 A @ 230 V, 50 Hz
  • Optional Controllers: IRC

Physical

  • Weight: 12.6 lb (5.7 kg)
  • Size: 10 x 6.1 x 16.3 in (255 x 155 x 415 mm)
  • Gobo Size: 19 mm outside, 14 mm image, 1 mm max thickness

What's in the Box?

  • Power cord
  • Quick Reference Guide
