AMPCLD1 - Ampetronic CLD1 Compact Loop Driver EXC Loop and Microphone Image 1

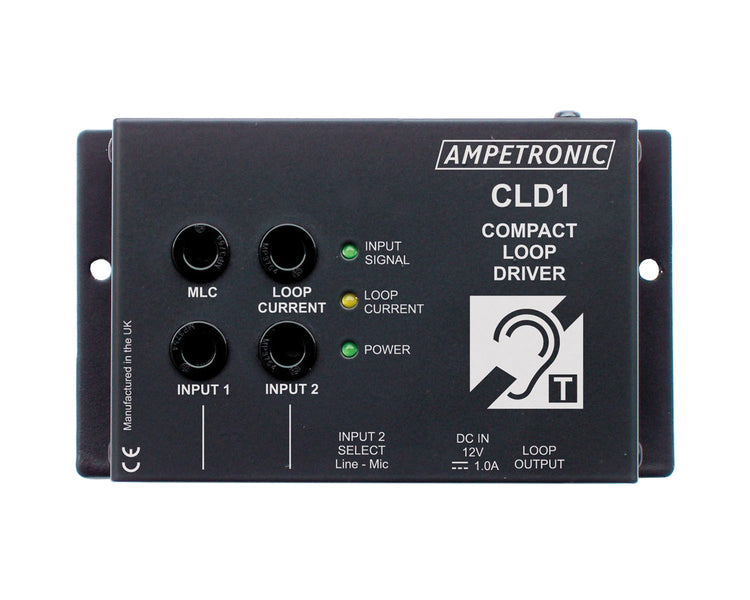

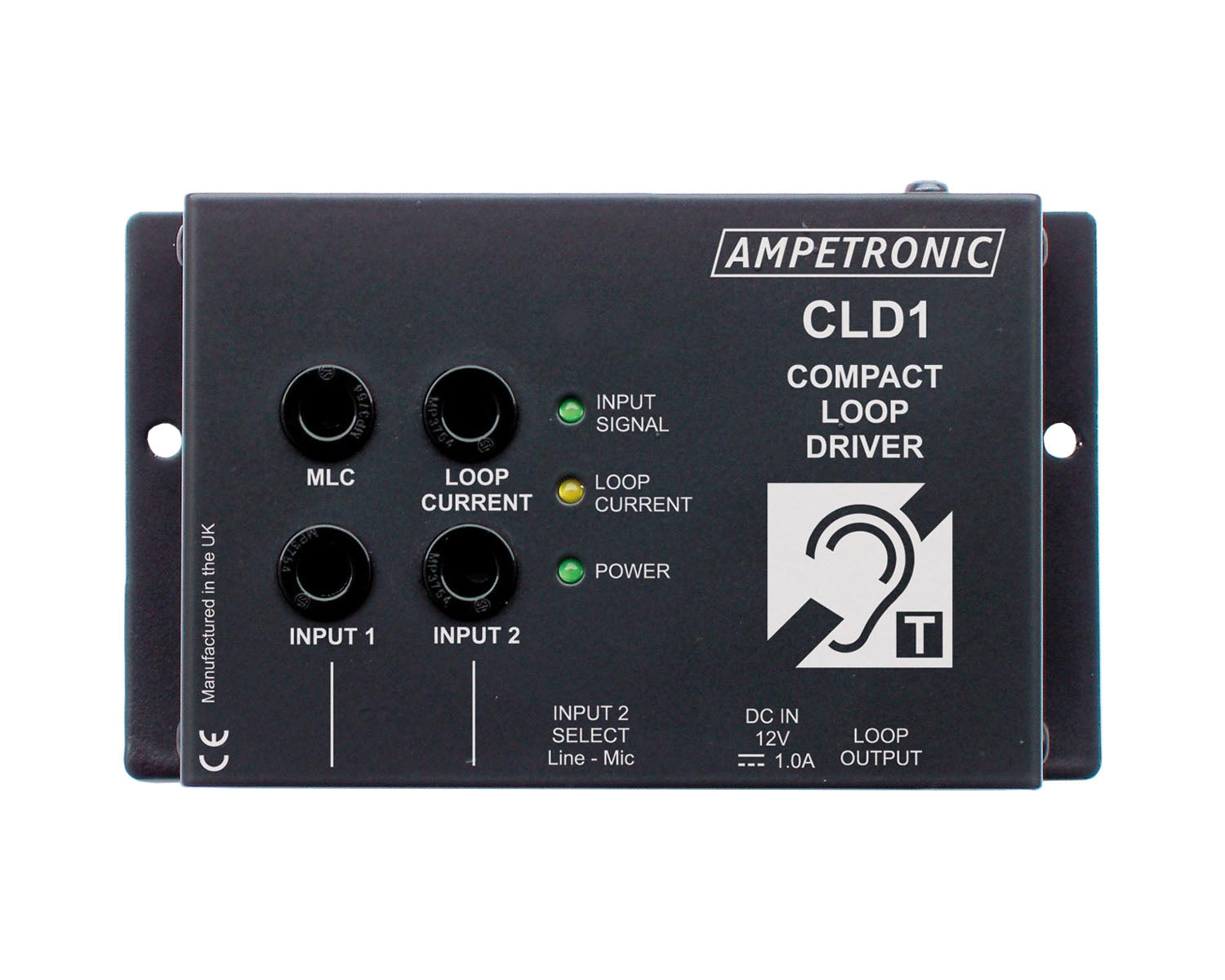

The CLD1 Compact Loop Driver is designed for counter systems and small area perimeter loop systems. Measuring only 128 x 74 x 35mm and with an output current of 2.4A RMS, the CLD1 is the smallest and highest performance amplifier in its class. Designed and built to Ampetronic’s high standards of reliability, backed with a 5 year warranty and Ampetronic support, the CLD1 offers certainty of performance and the lowest lifetime cost available.

Audio quality is ensured with metal loss correction (MLC) combined with Ampetronic’s usual high standards of design. The CLD1 is designed for flexibility and convenience, featuring 2 separate microphone inputs with independent level controls, one of which can be configured as a line input.

All cable connections are made on a single face of the unit, adding flexibility and further simplifying installation.

CLD001XX: CLD1 Induction Loop Driver Multi PSU, no Mic, no Loop Coil

Product Features

Low lifetime cost
Choice of microphone and pre-formed loop in counter kit
2 independent inputs
1 mic input and 1 switchable mic/line input
Metal loss compensation
All connections to a single face for installation convenience

Applications

Ticket and service counters
Retail counters
Information kiosks
Reception desks
Interview rooms
Small meeting rooms
Taxis and private cars

Product Specifications

INPUTS

Power
- 12V DC @ 1.0A max.
- Fuse fitted to PCB, type T 1.6A L
- Green LED Power indicator
Input 1
- Microphone input
- Suitable for unbalanced electret microphone
- 3.5mm mono jack socket
- Input impedance 8kΩ.
- 6v bias via 10kΩ source
- Sensitivity -60 dBu for max output
- Overload level -14 dBu.
- Recessed control on front panel
Input 2
- Switchable line / microphone
- Recessed switch on connector panel
- Microphone as for input 1
- Line input:
  - Input impedance 820kΩ
  - Sensitivity -20dBu for max output
- Overload: >+20dBu

OUTPUTS

Drive voltage: >3.2VRMS >4.5Vpk at maximum output current
Drive current
- 2.4ARMS 3.4Apk continuous 1kHz sine wave
- Short term peak >4.8Apk
- LED indicator on front panel
Loop resistance: 0.3Ω to 1.0Ω resistive or
Loop connector: Vibration proof clamps, accept 0.5 to 1.3mm2

AUDIO SYSTEM

Frequency response: 80Hz to 6.3kHz ±1.5dB
Automatic gain control
- AGC optimised for speech
- Dynamic range >36dB
- Green LED indicator on front panel
Metal loss correction
- 0 to 4.5dB/octave
- Recessed control on front panel
