The DP7 professional drum microphone pack represents an outstanding combination of seven microphones designed to meet the demands of today professional drummer, both on the stage and in the studio.

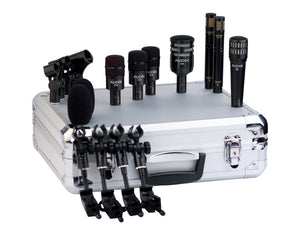

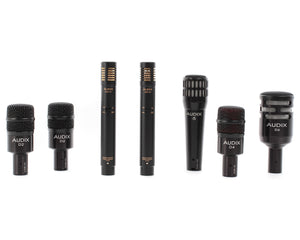

Included in the DP7 drum microphone package is the D6, Audix flagship kick drum microphone, two – D2 dynamic drum microphones for rack toms, one D4 for floor tom, the i5 for snare and a pair of ADX51 studio condenser microphones for overhead miking. Also included are four D-Vice rim mount clips for the snare and tom microphones, and three heavy duty tension fit microphone clips for the other three microphones. Everything is conveniently packaged in a foam-lined aluminium road case for safe keeping when the microphones are not in use.

Product Features

• Represents an outstanding combination of seven microphones

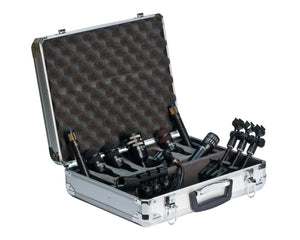

• Packaged in a foam-lined aluminium road case for safe keeping when the microphones are not in use
• All-in-one solution for miking drums
• Rugged Audix quality
• Dflex clips for easy positioning

Product Specifications

General

i5

• Transducer: Dynamic VLM Type B
• Frequency Response: 50 Hz - 16 kHz
• Polar Pattern: Cardioid
• Output Impedance: 150 ohms
• Sensitivity: 1.5 mV / Pa @ 1k
• Maximum SPL: ≥140 dB
• Off-axis rejection: ≥23 dB
• Power Requirements: None

D2

• Transducer: Dynamic VLM Type B
• Frequency Response: 68 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.2 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥30 dB
• Power Requirements: None

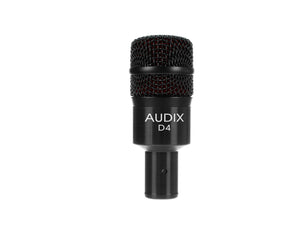

D4

• Transducer: Dynamic VLM Type D
• Frequency Response: 40 Hz - 18 kHz
• Polar Pattern: Hypercardioid
• Output Impedance: 280 ohms
• Sensitivity: 1.4 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥20 dB
• Power Requirements: None

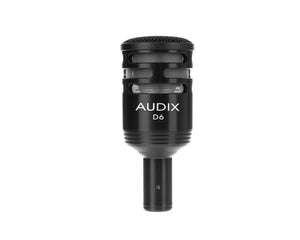

D6

• Transducer: Dynamic VLM Type B
• Frequency Response: 30 Hz - 15 kHz
• Polar Pattern: Cardioid
• Output Impedance: 280 ohms
• Sensitivity: 0.8 mV / Pa @ 1k
• Maximum SPL: ≥144 dB
• Off -axis rejection: ≥20 dB
• Power Requirements: None

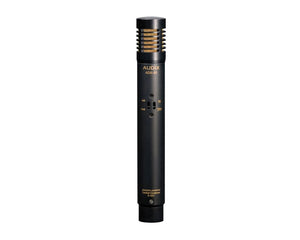

ADX51

• Transducer: Condenser
• Frequency Response: 40 Hz - 18 kHz
• Polar Pattern: Cardioid
• Output Impedance: 100 ohms
• Sensitivity: 17 mV / Pa @ 1k
• Maximum SPL: ≥132 dB
• Off-axis rejection: ≥15 dB
• Power Requirements: 9-52 V phantom

Physical & Dimensions

i5

• Materials / Finish: Die Cast Zinc Alloy/Black E-coat
• Weight: 250 g / 8.8 oz
• Length: 141.5 mm / 5.6 in

D2

• Materials / Finish: Black Hard Coat
• Weight: 250 g / 8.8 oz
• Length: 100 mm / 3.9 in

D4

• Materials / Finish: Black Hard Coat
• Weight: 128 g / 4.5 oz
• Length: 100 mm / 3.9 in

D6

• Materials / Finish: Machined Aluminium/Black Finish
• Weight: 254 g / 8.9 oz
• Length: 117 mm / 4.6 in

ADX51

• Materials / Finish: Machined Brass/Black E-coat
• Weight: 150 g / 8.9 oz
• Length: 160 mm / 6.3 in

what's in the Box?

• 1 x D6 Kick Drum Microphone
• 1 x i5 Snare Drum Microphone
• 2 x D2 Rack Tom Microphones
• 1 x D4 Floor Tom Microphone
• 2 x ADX51 Overhead Microphones
• 4 x DVICE Rim Mounts
• 3 x DCLIP Microphone Clips
• 1 x MC1 Microphone Clip
• 2 x WS81C Windscreens
• Aluminium Road Case
• "How to Mic Your Drums" DVD

Optional Accessories

• DFLEX - All-purpose percussion clamp
• DCLAMP - Tension rod mic clamp
• STANDKD - Adjustable kick drum mic stand with telescopic boom
• CBL20 - 20’ XLR-XLR mic cable
• CBLDR25 - 25’ right angle XLR-XLR mic cable
