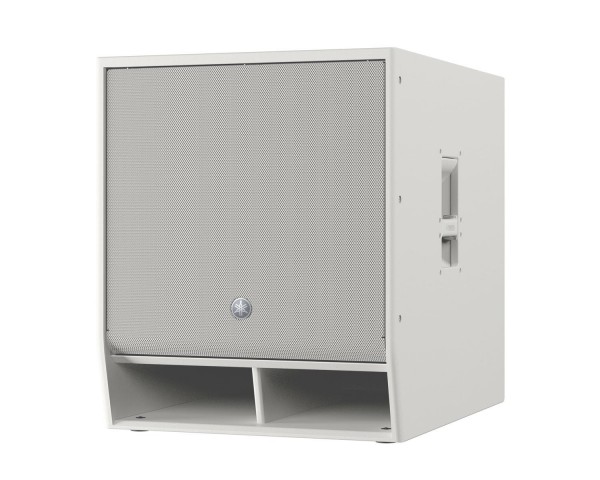

YAMDXS18XLFDW - Yamaha DXS18XLFDW Powered 18inch Subwoofer with 4inch Voice Coil and DANTE White Image 1

YAMDXS18XLFDW - Yamaha DXS18XLFDW Powered 18inch Subwoofer with 4inch Voice Coil and DANTE White Image 2

Description

Perfectly suited for use with DZR full-range speakers, the DXS18XLF-D/ DXS18XLF-DW is a Dante-equipped powered bass-reflex type subwoofer with extended low frequency, producing a best-in class maximum SPL of 136 dB with superb clarity and power.

Product Features

Powered 18" subwoofer with 4" Voice Coil
Maximum 136dB SPL and 30Hz-150Hz frequency range is ideal for today’s sound engineering demands
High power 1600W Class-D amplifier module
96kHz DSP for true high-resolution sound with super low latency
Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
Equipped with D-XSUB processing and cardioid mode capability
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Optional speaker cover (SPCVR-DXS18X) and wheel kit (SPW-1)
Durable black or white finish

Product Specifications

General

Speaker Type: Powered Subwoofer, bass-reflex
Frequency Range (-10dB): 30Hz - 150Hz
Components
- LF 18" Cone, 4" Voice Coil, Ferrite magnet
Sampling Frequency Rate: Internal: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum Output Level (1m; on axis): 136dB SPL *1
SRC: Yes
Power Rating
- Dynamic: 1600W *2
- Burst (20ms): 1300W
- Continuous: 1200W
I/O Connectors
- Analog I/O
  - Analog IN: Combo x 2, Line level (Maximum +24dBu), Input impedance 20kΩ,
  - Analog OUT: XLR3-32 x 2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x 2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x 1 (V-Lock)
Amplifier Class: Class-D
Cooling: Fan cooling, Variable speeds
Power Consumption: 40W (Idle), 180W (1/8)

Physical

Handle: Aluminium die-cast, Side x 2
Dimensions (W x H x D): 550mm x 657mm (with rubber feet) x 720mm (21.7" x 25.9" x 28.3")
Net Weight: 48.9kg (107.8lbs)
Options: Cover: SPCVR-DXS18X, Caster: SPW-1
Others: Enclosure Material, Finish, Colour: Plywood, Durable Polyurea Painting, Black/White
Pole Socket: Ø35mm (depth 80mm), M20 Threaded (depth 25mm)

*1 Measured peak SPL with pink noise @1m.

*2 Total peak power of individual outputs (AC 120V, 25°C). This value was measured at minimum load impedance, with protection released.
