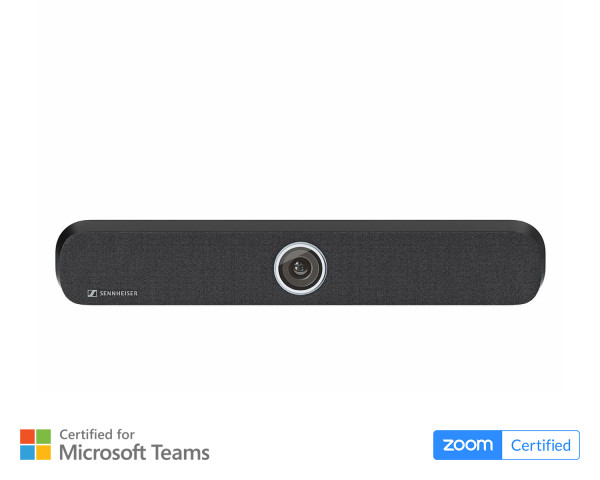

TeamConnect Bar S 4K Conferencing Video Bar for Small Rooms

Product Features

• Plug and Play Device: Quick start via USB cable
• Integrated Beamforming Technology: Freedom of movement and seamless transition among presenters
• Flexible Extensions: Using Dante for adding extension mics and/or a 2nd external USB camera
• High Video Quality: 4K Ultra HD camera equipped with advanced AI features
• Full-Range Stereo Speakers: Natural speech and outstanding intelligibility
• Built-In DSP: Automatically optimizes room acoustics
• Multiple Mounting Options: Wall Mount, VESA Mount, Tabletop or Freestanding
• Autoframing and Person Tiling: Features to clearly see everyone in the room
• Control Management: Full remote-control access via Sennheiser Control Cockpit
• Brand Agnostic Integration: Certifications pending for 3rd party media control systems (Barco, Crestron, Extron, Q-Sys) and platforms (Microsoft Teams, Zoom, Tencent, etc.)
• Advanced Security Features: Encrypted control communication and password protected by default for secure content transmission

Product Specifications

Physical & Dimensions

• Dimensions (L x W x H):  450 x 71 x 76 mm
• Weight:  1.5 kg
• Operating temperature range:  0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature range:  -25 °C to 70 °C (-13 °F to 158 °F)
• Relative humidity operation:  0 to 75 %, non-condensing
• Relative humidity storage:  0 to 95 %, non-condensing
• DC IN:  15 V $, max. 2 A
• Max. power consumption:  30 W
• Voltage range PoE (PD):  42.5 – 57.0 V $ (IEEE 802.3at Type 2, PoE+)

Power State Information

• Power State Information Standby Mode:  ≤ 0.50 W (Entered after < 2.5 hours with no activity on any network port)
• Networked Standby (all ports):  ≤ 2.00 W (Entered after < 20 minutes of inactivity)

Interfaces

• HDMI out:   HDMI 2.0
• USB-C:  USB 3.1 (Gen 1)
• USB-A:  USB 3.1 (Gen1)
  • Power output:  5 V $, max. 900 mA
• Ethernet:  1 x 1000/100/10 Mbit/s (RJ45) Note: Only use network cables with the standard CAT5e (F/STP) or better.
• DC IN dimension:  5.5 x 2.1 x 10.5 mm

Wi-Fi

• Standard:  IEEE 802.11a /b /g /n /ac
• Transmission system:  SISO (Single-In, Single-Out)
• Frequency ranges (max. RF output power):
  • 2412 MHz – 2472 MHz (max 20 dBm RF power)
  • 5150 MHz – 5350 MHz (max. 23 dBm RF power)
  • 5470 MHz – 5725 MHz (max. 23 dBm RF power)
  • 5725 MHz – 5850 MHz (max. 14 dBm RF power)
• Modulation:  64QAM, 16QAM, QPSK, BPSK, CCK, DQPSK, DBPSK

Bluetooth®

• Version:  5.1
• Transmission frequency:  2402 MHz - 2480 MHz
• Modulation:  GFSK, π/4 DQPSK, 8DPSK
• Profiles:  A2DP, HFP, AVRCP
• Max. RF output power:  10 dBm
• Codec:  SBC

Loudspeaker

• Number of speakers:  2 full range loudspeakers with passive radiator
  • Diameter:  50 mm (2")
• Frequency response:  100 Hz - 18 kHz
• THD at max. output:  < 5 %
• Amplifier:  Class-D
• Max. SPL (output):  80 dB SPL
• Total Audio Power (RMS/PEAK):  10 W / 20 W

Camera

• Resolution:  UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240
• Zoom
  • Certified:  2x digital (Microsoft Teams)
  • Optional:  3x digital
• Technology:  ePTZ
• Diagonal field of view:  120°
• Horizontal field of view:  115°

What's in the Box?

• TeamConnect Bar S
• Mounting Bracket
• Drilling Template
• Power Supply Unit + Power Cord
• Remote Control (incl. batteries, bracket & storage)
• Magnetic Lens Cap
• HDMI Cable
• USB-C to USB-C Cable
• Screws
• Quick Guide
• Safety Guide with manufacturer‘s declarations
