200 Ladder Curved Length 2m 2LDC2000

« return to previous page

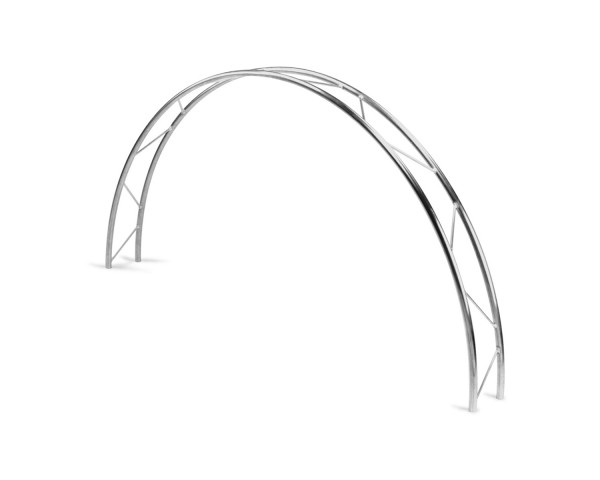

Trilite by OPTI 200 Ladder Curved Length 2m 2LDC2000 - Main Image
Price:
RRP: £222.60 inc VAT
Code:
TRI2LDC2000
Manufacturer Code:
2 LD C 2000
Brand:
Trilite by OPTI

Quantity required:

Main Features

  • Trilite 200 2m Curved Length - Ladder
  • Ladder Length, Trianglular Curve pictured
  • Let's the designer specify arcs and curves
  • Fantastic shapes can be made from gentle curves to complex domes
  • Produced in sections of approximately 2.0m length
  • Can be customised to suit particular requirements
Share:

200 Ladder Curved Length 2m 2LDC2000

OPTI Trilite 200 is the original aluminium truss system.  OPTI Trilite 200 is a highly versatile, strong 2 inch aluminium tube truss system used in exhibition halls all over the world.  OPTI Trilite 200 is perfect for all types of temporary or permanent structures inside or out.

OPTI Trilite 200 is produced in three formats Ladder (2 main tubes), Triangular (3 main tubes) and Quad (4 main tubes).

Opti's ability to produce OPTI Trilite 200 curves to any radius above 0.8m gives the designer the widest possible freedom when specifying arcs and circles.  Fantastic shapes can be made from gentle curves to complex curved shapes or balls of aluminium.  OPTI Trilite 200 is produced in sections of approximately 2.0m length (outside circumference).

Curved sections of OPTI Trilite 200 can be integrated into structures, built into domes or customised to suit particular requirements.

Product Features

  • Simple M10 Nylock high tensile nut and bolt system
  • Quick and easy to assemble
  • Great length to weight and loadbearing qualities
  • Curved Sections to maximum length of approximately 2.0m to any radius over 0.8m
  • Junctions from 2 Way to 6 Way in all formats
  • Extensive range of OPTI Trilite 200 Accessories

Product Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm)
  • Material: 6005 - T6 Aluminium
