200 Ladder Length 1m 2LD1000

« go back

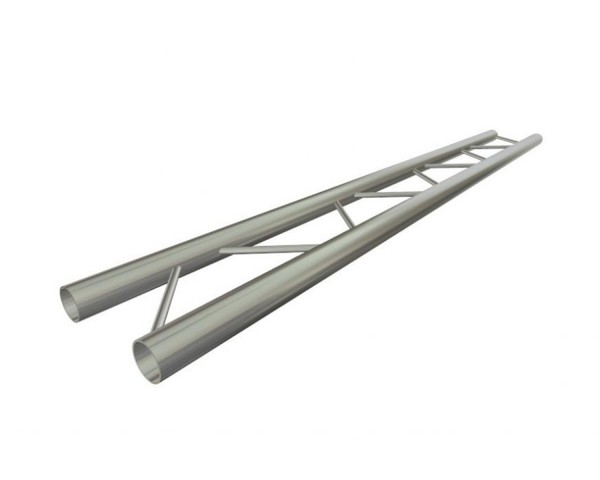

Trilite by OPTI 200 Ladder Length 1m 2LD1000 - Main Image
Trilite by OPTI 200 Ladder Length 1m 2LD1000 - Image 1
Trilite by OPTI 200 Ladder Length 1m 2LD1000 - Image 2
Price:
RRP: £60.00 inc VAT
Code:
TRI2LD1000
Manufacturer Code:
2 LD 1000
Brand:
Trilite by OPTI
Stock availability:
Stock: Checking stock

Length:

Quantity required:

Main Features

  • Trilite 200, 1m, Straight Ladder Truss Length
  • Highly versatile, strong 2 inch aluminium tube truss system
  • Used in exhibition halls all over the world
  • Perfect for all types of temporary or permanent structures inside or out
  • Gives you the professional image you need
  • Supplied with connecting spigots for one end
Share:

200 Ladder Length 1m 2LD1000

OPTI Trilite 200 is the original aluminium truss system.  OPTI Trilite 200 is a highly versatile, strong 2 inch aluminium tube truss system used in exhibition halls all over the world.  OPTI Trilite 200 is perfect for all types of temporary or permanent structures inside or out.

OPTI Trilite 200 is produced in three formats Ladder (2 main tubes), Triangular (3 main tubes) and Quad (4 main tubes).

OPTI Trilite 200 has ten standard straight lengths ranging from 0.4m to 8.0m.  Non-standard straight lengths of OPTI Trilite 200 can be produced and are priced to the next full metre in length.  Any special length of OPTI Trilite 200 less than 1m is priced as 1m.

All straight lengths and curved sections of OPTI Trilite 200 are supplied with connecting spigots for one end.

Product Features

  • Simple M10 Nylock high tensile nut and bolt system
  • Quick and easy to assemble
  • Great length to weight and loadbearing qualities
  • 10 Straight Lengths from 0.4m to 8.0m
  • Curved Sections to maximum length of approximately 2.0m to any radius over 0.8m
  • Junctions from 2 Way to 6 Way in all formats
  • Extensive range of OPTI Trilite 200 Accessories

Product Specifications

  • Weight: 2.20kg
  • Max UDL (kg): 505
  • Max Pnt (kg): 444
  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm)
  • Material: 6005 - T6 Aluminium
