200 Quad Length 1m 2QD1000

« return to previous page

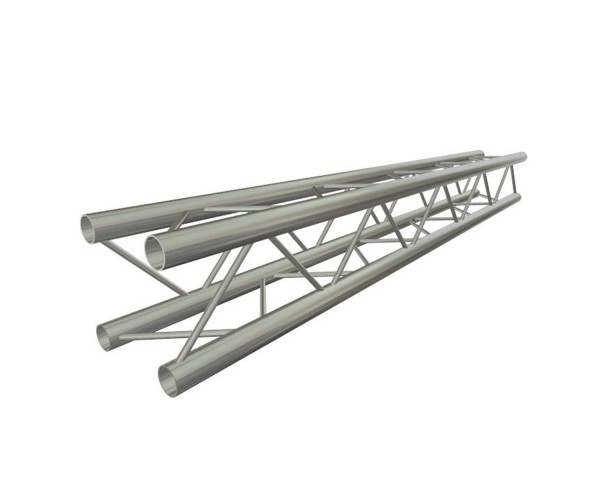

Trilite by OPTI 200 Quad Length 1m 2QD1000 - Main Image
Trilite by OPTI 200 Quad Length 1m 2QD1000 - Image 1
Trilite by OPTI 200 Quad Length 1m 2QD1000 - Image 2
Price:
RRP: £168.00 inc VAT
Code:
TRI2QD1000
Manufacturer Code:
2 QD 1000
Brand:
Trilite by OPTI

Quantity required:

Main Features

  • Trilite 200, 1m, Straight Quad Truss Length
  • Highly versatile, strong 2 inch aluminium tube truss system
  • Used in exhibition halls all over the world
  • Perfect for all types of temporary or permanent structures inside or out
  • Gives you the professional image you need
  • Supplied with connecting spigots for one end
Share:

200 Quad Length 1m 2QD1000

OPTI Trilite 200 is the original aluminium truss system.  OPTI Trilite 200 is a highly versatile, strong 2 inch aluminium tube truss system used in exhibition halls all over the world.  OPTI Trilite 200 is perfect for all types of temporary or permanent structures inside or out.

OPTI Trilite 200 is produced in three formats Ladder (2 main tubes), Triangular (3 main tubes) and Quad (4 main tubes).

OPTI Trilite 200 has ten quad straight lengths ranging from 0.4m to 8.0m.  Non-standard quad straight lengths of OPTI Trilite 200 can be produced and are priced to the next full metre in length.  Any special length of OPTI Trilite 200 less than 1m is priced as 1m.

All quad straight lengths and curved sections of OPTI Trilite 200 are supplied with connecting spigots for one end.

Product Features

  • Simple M10 Nylock high tensile nut and bolt system
  • Quick and easy to assemble
  • Great length to weight and loadbearing qualities
  • 10 Quad straight Lengths from 0.4m to 8.0m
  • Curved Sections to maximum length of approximately 2.0m to any radius over 0.8m
  • Junctions from 2 Way to 6 Way in all formats
  • Extensive range of OPTI Trilite 200 Accessories

Product Specifications

  • Weight: 4.81kg
  • Max UDL (kg): 1,472
  • Max Pnt (kg): 649
  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm)
  • Material: 6005 - T6 Aluminium
