3D VISION PLUS Hexagonal Shaped LED Panel 3D in Multiples

« return to previous page

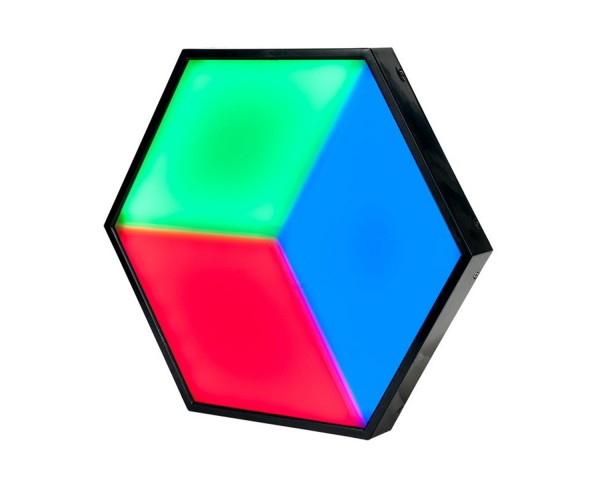

ADJ 3D VISION PLUS Hexagonal Shaped LED Panel 3D in Multiples - Main Image
Price:
RRP: £207.60 inc VAT
Code:
ADJ1226300069
Manufacturer Code:
1226300069
Brand:
ADJ
Stock availability:
Stock: Checking stock

Quantity required:

Main Features

  • Distinctive hexagonal-shaped LED panel
  • Three-dimensional appearance
  • Safety hook on rear panel
  • M10 thread on rear panel to connect a clamp to secure to a pipe
  • Wall mount slots on rear panel
  • Panels can be used in isolation or linked together at any of their six sides
Share:

3D VISION PLUS Hexagonal Shaped LED Panel 3D in Multiples

The 3D Vision Plus is a hexagonal shaped LED panel with stunning 3D visual effects when used in multiples. Designed for nightclubs, lounges, bars, entertainment centers, stages and mobile entertainers. The 3D Vision Plus has a 4-Button menu system with a digital display. It may be controllable via DMX using a DMX to RJ45 adapter. It can also be used with EZ Kling interface for Artnet and KlingNet, LED Master control. Link multiple panels together via powerCon input/output with RJ45 ports for data linking. Panels lock together with an easy to use quick release panel lock. Rigging bars are also available for dead hang installation (M10 thread on the rear for a Pro Clamp so units can easily be fastened to truss or 2-inch pipe).

Product Features

  • Distinctive hexagonal-shaped LED panel is divided into three separate sections in a way that gives it a unique three-dimensional appearance
  • Safety hook on rear panel
  • M10 thread on rear panel to connect a clamp to secure to a pipe
  • Wall mount slots on rear panel
  • Designed for nightclubs, lounges, bars, entertainment centres, stages and mobile entertainers
  • Panels can be used in isolation or linked together at any of their six sides

Product Specifications

General

  • Light Source:
    • 72 Pieces 3-in-1 RGB LEDs
    • Beam Angle: 180 Degrees
  • Control:
    • 3 Operating Modes: Sound Active Mode (with Sound Sensitivity Adjustment), Auto Run Mode (16 Programs with Speed Adjustment), DMX Control
    • 3 DMX Channel Modes: 3, 9, and 13 Channel Mode
    • Master/Slave Set Up
    • 4-Button Menu with Digital Display
    • With Wired Digital Communication Network
  • Connections:
    • powerCON In/Out to daisy chain power
    • RJ45 In/Out DMX protocol
  • Electrical:
    • Input Voltage: AC 100-250V, 50/60Hz

Physical & Dimensions

  • Height: 350.7 mm
  • Width: 404.7mm
  • Depth: 80.5mm
  • Weight: 2.74kgs
