Main Features
Compact enclosure
The cabinet is fitted with M10 threaded suspension points
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility

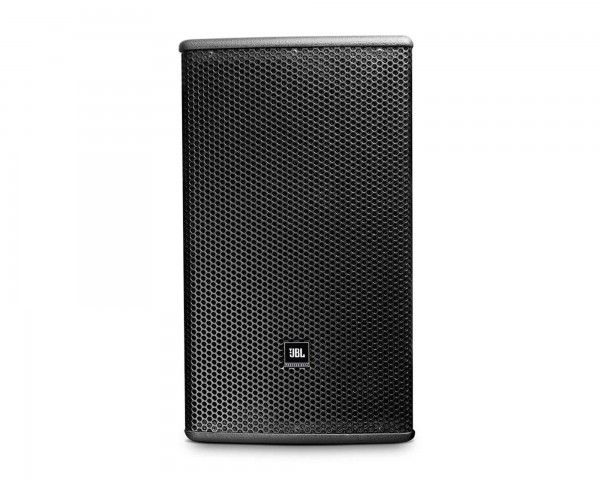

AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications.
Product Features
Compact enclosure
258 mm (10 in) LF transducer
90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5") voice-coil compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility
Applications
Performing Spaces
Clubs & Bars
Houses of Worship
Multi Media Spaces
Retail & Hospitality Spaces
Presentation Suites
Educational Facilities
Product Specifcations
General
Frequency Range (-10 dB): 68 Hz - 20 kHz
Frequency Response (±3 dB): 85 Hz - 18kHz
System Sensitivity (1w @ 1m): 95 dB
Nominal Impedance: 8 ohms
Maximum SPL(1m): 118 dB (124 dB peak)
Power Rating (Continuous/Program/Peak): 200 W/400 W/800 W
Coverage Pattern: 90° x 50° (H x V)
Crossover: 1.8 kHz
Low Frequency Driver: 1 x 10" woofer (P/N: 5050692), 258 mm (10 in) driver with 66 mm (2.5 in) voice-coil
High Frequency Driver: 1 x 2408H-2 driver with 25 mm (1 in) exit/38 mm (1.5 in) voice-coil
