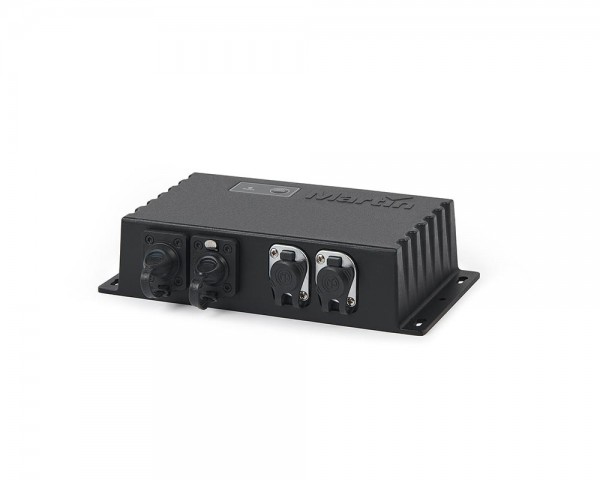

PDE Junction Box Active Power-DMX-Ethernet to Single Cable

Product Features

• powerCON TRUE1 TOP power in & thru
• XLR 5 TOP DMX in & thru (build-in DMX/RDM splitter)
• etherCON TOP Ethernet in & thru (build-in gigabit switch with fail-safe bypass)
• Martin PDE Hybrid output
• IP65 rated
• Status LED to indicate received protocol
• Pushbutton to recall test patterns on all attached fixtures
• Robust metal housing
• Wall or truss-mountable

Product Specifications

PHYSICAL

• Length: 215 mm (8.5 in.) (incl. mounting flanges)
• Width: 115 mm (4.5 in.)
• Height: 51 mm (2.0 in.)
• Weight: 1 kg (2.2 lbs.)

CONTROL AND PROGRAMMING

• Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
• Protocol detection: Automatic
• Fixture Identification: User-settable ID number
• DMX compliance: USITT DMX512-A
• RDM compliance: ANSI/ESTA E1.20
• Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
• sACN Compliance: ANSI E1.31 - 2016
• Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
• DMX/RDM Transceiver IN/THRU: Opto-Isolated RS-485
• DMX/RDM Transceiver OUT: Opto-Isolated RS-485
• Firmware update: via DMX using Martin Companion or via Ethernet using P3 System Controller
• Configuration: RDM, RDM over Art-Net or P3
• Ethernet Transceiver THRU: 100/1000Mbit (with fail-safe bypass to Ethernet IN)
• Ethernet Transceiver IN: 100/1000Mbit (with fail-safe bypass to Ethernet THRU)
• Ethernet Transceiver OUT: 10/100Mbit

CONTROL/USER INTERFACE

• Device status: Multi-color status LED
• Fixture Test: Pushbutton to call up test pattern on fixtures connected to PDE output

CONSTRUCTION

• Housing: Aluminum
• Color: Black
• Protection rating: IP65
• RoHS: Compliant
• REACH: Compliant

INSTALLATION

• Location: indoor or temporary outdoor use
• Orientation: Any
• Wallmount: Using mounting flanges
• Trussmount: Using half-coupler clamp in M10 threaded hole, max. bolt length 22 mm

CONNECTIONS

• AC power input: Neutrik powerCON TRUE1 TOP (IP65)
• AC power thru: Neutrik powerCON TRUE1 TOP (IP65)
• Ethernet input: Neutrik etherCON TOP (IP65)
• Ethernet thru: Neutrik etherCON TOP (IP65)
• DMX input: Neutrik XLR 5-pin Male TOP (IP65)
• DMX thru: Neutrik XLR 5-pin Female TOP (IP65)
• AC Power, DMX and Network out: PDE hybrid connector (IP65)
• All connections hot plugging compatible

ELECTRICAL

• AC power: 100-240 V AC nominal, 50/60 Hz
• Power supply unit: Auto-ranging electronic switch mode
• Maximum power consumption: 6 W
• Typical half-cycle RMS inrush current at 230 V, 50 Hz: 1.5 A
• Typical earth-leakage current: 0.25 mA
• TYPICAL POWER AND CURRENT
• 100 V, 60 Hz: 5.1 W, 0.089 A, PF 0.58
• 120 V, 60 Hz: 5.1 W, 0.078 A. PF 0.56
• 208 V, 60 Hz: 5.5 W, 0.048 A, PF 0.55
• 230 V, 50 Hz: 5.7 W, 0.046 A, PF 0.55
• 240 V, 50 Hz: 5.9 W, 0.046 A, PF 0.55

^{Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%. PF = power factor.}

THERMAL

• Cooling: Convection
• Maximum ambient temperature (Ta max.): 40° C
• Minimum ambient temperature (Ta min.): 0° C
• Maximum total heat dissipation, calculated, +/- 10%: 20 BTU/hr

APPROVALS

• EU safety: EN 61347-2-11, EN 62493
• EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
• US safety: UL 1573
• US EMC: 47 CRF Chapter 15 Class B
• Canadian safety: CSA 22.2 No. 166
• Canadian EMC: ICES-003 Class B, ICES-005 Class B
• Australia/NZ: RCM
• Global CB Certification/IECEE: IEC 61347-2-11
• United Kingdom: UKCA

ACCESSORIES

• Mechanical Accessories
  • Super Lightweight Half Coupler Rigging Clamp, black: P/N 91602018
• Pre-Assembled Hybrid PDE Cables
  • Power+Data Cable Rental PDE-PDE 1m: P/N 91616001
  • Power+Data Cable Rental PDE-PDE 2.5m: P/N 91616002
  • Power+Data Cable Rental PDE-PDE 5m: P/N 91616003
  • Power+Data Cable Rental PDE-PDE 10m: P/N 91616004
  • Power+Data Cable Rental PDE-PDE 25m: P/N 91616005
• Bulk Hybrid PDE Cable and Connectors
  • Power+Data Connector PDE Male: P/N 91611701
  • Power+Data Connector PDE Female: P/N 91611702
  • Power+Data Cable Power-DMX-Ethernet Rental 100m: P/N 91616006
• Powercables
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91611797
  • Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91611786
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.): P/N 91610173
  • Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.): P/N 91610174
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91611784
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91611785
  • Power Relay Cable, H07RN-F, 2.5 mm², TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91611796
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 0.45 m (1.5 ft.): P/N 91610170
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 1.2 m (3.9 ft.): P/N 91610171
  • Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): P/N 91610172
  • Cable Connector, Neutrik PowerCON TRUE1 Female: P/N 91611789HU
  • Cable Connector, Neutrik PowerCON TRUE1 Male: P/N 91611788HU

RELATED ITEMS

• Passive Junction Box Power-DMX-Ethernet to PDE: P/N 91610001
• BreakIn Cable Power-DMX-Ethernet to PDE: P/N MAR-91700000
• BreakOut Cable PDE to Power-DMX-Ethernet: P/N MAR-91700001
• Martin Companion Cable (for firmware update over DMX): P/N 91616091
• VDO Atomic Dot CLD in cardboard: P/N 90357701
• VDO Atomic Dot WRM in cardboard: P/N 90357702
• VDO Atomic Bold in cardboard: P/N MAR-90357703

ORDERING INFORMATION

• Active Junction Box Power-DMX-Ethernet to PDE: P/N MAR-91700002
