ADORN A80TW 8" 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White

« return to previous page

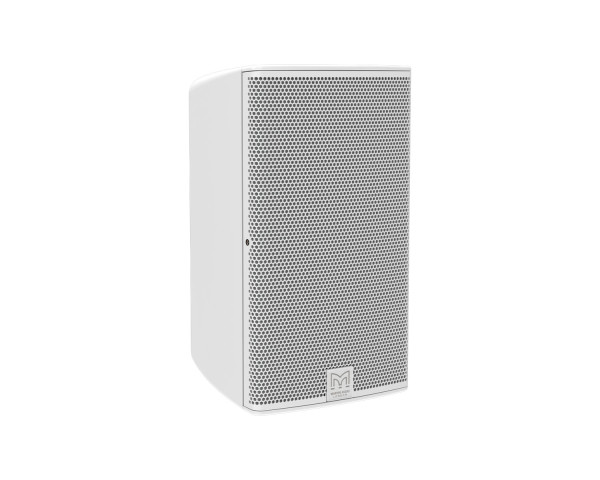

Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Main Image
Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Image 1
Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Image 2
Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Image 3
Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Image 4
Martin Audio ADORN A80TW 8 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White - Image 5
Price:
RRP: £420.00 inc VAT
Code:
MAUA80TW
Manufacturer Code:
A80T-W
Brand:
Martin Audio

Quantity required:

Main Features

  • Contemporary, unobtrusive design
  • High fidelity sound
  • 8Ω Low Impedance
  • 70V/100V line transformer
  • Low and high-frequency overload protection
  • 90° x 50° coverage
Share:

ADORN A80TW 8" 2-Way Speaker Inc Bracket 90x50° 8Ω/100V White

The ADORN A80T is a two-way passive speaker with an elegant design that is perfect for architectural environments that require high fidelity sound from an unobtrusive, compact enclosure. It brings class-leading performance, reliability and value to a wide range of commercial sound applications — from retail outlets, bars and restaurants to corporate offices and convention centres.

Comprising an 8” (203mm) LF driver and a 1” (25mm) polymer dome HF compression driver on a 90° x 50° horn, it handles 200W AES, 800W peak and can produce 120dB peak output at 1 metre. It has a smooth frequency response and strong bass reproduction that extends down to 63Hz.

With a nominal impedance of 8 ohms, multiple speakers can be driven in parallel from a single channel of a low impedance amplifier, such as the Martin Audio VIA2502 or VIA5002, thereby maximising efficiency and minimising cost. A80T also incorporates a high-quality transformer for 70V/100V line operation, with transformer taps selected by a rotary switch.

Product Features

  • Contemporary, unobtrusive design
  • High output capability
  • High fidelity sound
  • 70V/100V line transformer
  • Low and high-frequency overload protection
  • Vertical or horizontal orientation
  • 90° x 50° coverage
  • IP54 with optional waterproof connector cover
  • 5-year warranty

Product Specifications

  • Type:  Compact passive two-way system, front ported bass reflex
  • Frequency Response:  63Hz-17kHz ± 3dB, -10dB @ 50Hz
  • Drivers
    • LF:  8” with 2” high-temp voice coil, ferrite motor system
    • HF:  1” with 1” exit polymer dome compression driver
  • Rated Power:  200W AES, 800W peak
  • Recommended Amplifier:  VIA2502 or VIA5004 (or VIA5002 for70V/100V line)
  • Sensitivity:  91dB
  • Maximum SPL:  120dB peak
  • Nominal Impedance:  8 ohms
  • Dispersion (-6dB):  90° H x 50° V
  • Crossover:  2.3kHz passive (LF and HF auto-resetting fuses)
  • Transformer Taps:
    • 70V:  60/30/15/7.5W
    • 100V:  60/30/15W
  • Recommended High-Pass Filter:  40Hz 24dB/oct (8 ohm), 60Hz 24dB/oct (Transformer)
  • Enclosure:  ABS, UL 94V-0 rated
  • Finish:  White
  • Grille:  Perforated steel
  • Connectors:  Low profile 13A push-lock
  • Fittings:  6 x M6 inserts for wall or ceiling brackets
  • Dimensions Excl. Bracket (WxHxD):  246mm x 421mm x 233mm  (9.69in x 16.56in x 9.18in)
  • Weight:  9.08kg (20.02lbs)
  • Accessories:
    • IP54 rating with optional waterproof connector cover (not included)
    • Wall bracket WB6/8 (included)

What's in the Box?

  • ADORN A80T
  • WB6/8 Wall bracket
