Air 12 12" 2-Way Coaxial Loudspeaker 400W Red

« return to previous page

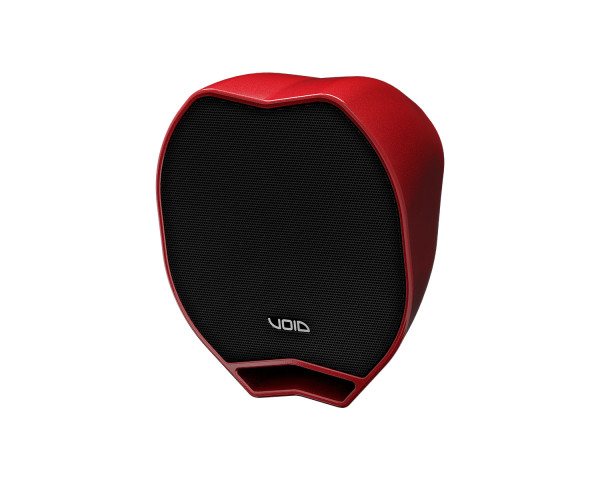

Void Acoustics Air 12 12 2-Way Coaxial Loudspeaker 400W Red - Main Image
Void Acoustics Air 12 12 2-Way Coaxial Loudspeaker 400W Red - Image 1
Void Acoustics Air 12 12 2-Way Coaxial Loudspeaker 400W Red - Image 2
Price:
POA
Code:
VOIAIR12R
Manufacturer Code:
TBC
Brand:
Void Acoustics

Quantity required:

Price on Application * please call sales team on
01525 850085 for more info

Main Features

  • Visually striking, sculpted design in a low-resonance fibreglass enclosure
  • High-performance coaxial driver with optimised neodymium motor design
  • Point-source dispersion (80° x 80°) for consistent and controlled coverage
  • 400 W AES power handling, delivering up to 130 dB peak output
  • Weather-resistant input glands with Phoenix connector and link-through functionality
  • Adjustable tilt and flush-mount fixtures included (flush mount 30° tilt)
Share:

Air 12 12" 2-Way Coaxial Loudspeaker 400W Red

Featuring a 400 W AES power-handling coaxial driver, delivering an exceptionally uniform, point-source radiation pattern for precise sound coverage and unmatched audio clarity. The Air 12 is constructed from a low-resonance fibreglass composite. The Air 12 comes supplied with a low-profile adjustable tilt bracket and a fixed-angle flush-mount bracket. Available to order in Void Red, Black, and White finishes, with custom RAL and Krome options upon request.

Product Features

  • Visually striking, sculpted design in a low-resonance fibreglass enclosure
  • Compact two-way reflex system
  • High-performance coaxial driver with optimised neodymium motor design
  • Point-source dispersion (80° x 80°) for consistent and controlled coverage
  • 400 W AES power handling, delivering up to 130 dB peak output
  • Weather-resistant input glands with Phoenix connector and link-through functionality
  • Adjustable tilt and flush-mount fixtures included (flush mount 30° tilt)

Product Specifications

  • Frequency response: 92 Hz - 20 kHz ±3 dB
  • Efficiency:  98 dB 1W / 1M
  • Nominal impedance:  8 Ω
  • Power handling:  400 W AES
  • Maximum output:  124 dB cont, 130 dB peak
  • Driver configuration:  1 x 12”, 1 x 1” Coaxial
  • Dispersion:  80° H x 80° V nominal coverage
  • Connectors:  1 x Phoenix connector with link out
  • Weight:  TBC
  • Enclosure:  Fibreglass Composite
  • Mounting:  Tilt adjustable and flush mount (Both options included)
  • Colour:  Custom colours available upon request
  • IP rating:  TBC
  • Recommended Amplifier:  Q1.5+ or higher
