Alpha+ M210 Hybrid Horn Loaded System 2x10" MF / 4x3" HF

« return to previous page

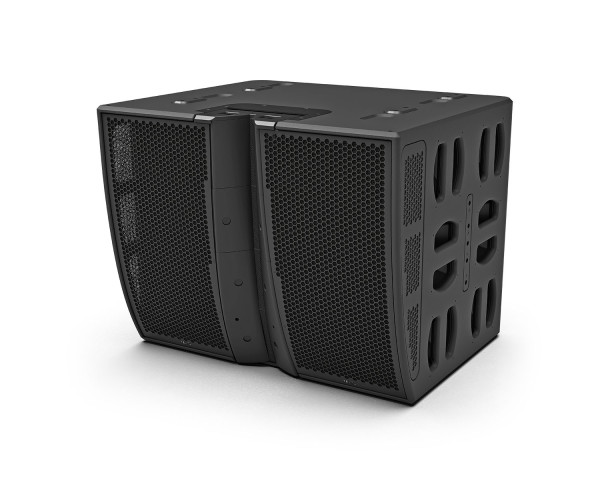

NEXO Alpha+ M210 Hybrid Horn Loaded System 2x10 MF / 4x3 HF - Main Image
NEXO Alpha+ M210 Hybrid Horn Loaded System 2x10 MF / 4x3 HF - Image 1
NEXO Alpha+ M210 Hybrid Horn Loaded System 2x10 MF / 4x3 HF - Image 2
Price:
RRP: £7,169.72 inc VAT
Code:
NEXALPHAM210
Manufacturer Code:
01M210
Brand:
NEXO

Quantity required:

Main Features

  • Extremely Powerful (148 dB peak) main module of the Alpha+ system
  • Lightweight (53 kg / 117 lbs) design using custom 15 mm bent plywood of Birch and Poplar
  • Unique articulated HF waveguide to adjust vertical directivity
  • Continuously changing horizontal directivity from 120° (bottom) to 60° (top)
  • Mid-frequency horn ensure maximum radiating surface and high efficiency
  • Frequency Response @-6 dB: 160 Hz to 20 kHz
Share:

Alpha+ M210 Hybrid Horn Loaded System 2x10" MF / 4x3" HF

The two-way M210 active Main module uses two lightweight pure MF neodymium 10″ drivers horn loaded, and coaxially mounted with four 3″ neodymium compression drivers mounted on an innovative articulated waveguide.

Using a custom made 15 mm plywood cabinet of Birch and Poplar with a rounded shape to prevent damage in the corners, the M210 weighs in at 53kg/117lbs and achieves a peak SPL of 148dB. The mid-frequency horn ensures maximum radiating surface and high efficiency.

A unique articulated HF waveguide is used to adjust vertical directivity. Continuously changing horizontal directivity from 120° (bottom) to 60° (top) is tuneable with optional magnetic flanges.

Product Features

  • Extremely Powerful (148 dB peak) main module of the Alpha+ system
  • Lightweight (53 kg / 117 lbs) design using custom made 15 mm bent plywood of Birch and Poplar
  • Unique articulated HF waveguide to adjust vertical directivity
  • Continuously changing horizontal directivity from 120° (bottom) to 60° (top), tunable with optional magnetic flanges
  • Mid-frequency horn ensure maximum radiating surface and high efficiency

Product Specifications

  • With NEXO Processing
    • Frequency Response @-6 dB:  160 Hz to 20 kHz
    • Peak SPL@1m:  148 dB Peak
    • Operating Voltage:  45 Vrms (150 Vpeak)
    • Crossover Frequency:  500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Combiner
    • Vertical Dispersion:  Adjustable (-20°/+20° Default mode) or (-20°/+0° Long Throw mode)
    • Horizontal Dispersion:  120° (Bottom) to 60° (Top) continuously
    • Nominal Impedance:  4 Ohms + 4 Ohms
  • MF Components:  2 x High-efficiency pure medium neodymium 10” 8 Ohms
  • HF Components:  4 x Neodymium 3“ voice coil 1.4” throat driver on a BEA/FEA optimized Wavesource
  • Connectors:  2 x NL4, 4 poles connectors
  • Rigging points:  2 x universal accessory fit (on each side) + 1 x universal accessory fit on the back
  • Material:  Custom made bent plywood of baltic birch and poplar
  • Finish:  Black structural paint
  • Front Finish:  Magnelis® Steel front grille
  • Height x Width x Depth:  598mm x 755mm x 632 mm (23.5” x 29.7” x 24.9”)
  • Weight: Net:  53 kg (117 lbs)
  • Operating temperature range:  0°C - 40 °C (32° F - 104° F)
  • Storage temperature range:  -20 °C - 60 °C (-4 ° F - 140° F)
  • Recommended powering solution:  NXAMP4x4mk2 Powered TDcontroller: Up to 2 x M210 (MF/HF) on 2 x channels
