Main Features
Coverage: 60° x 40°
2265H Differential Drive® Low-Frequency Driver
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.

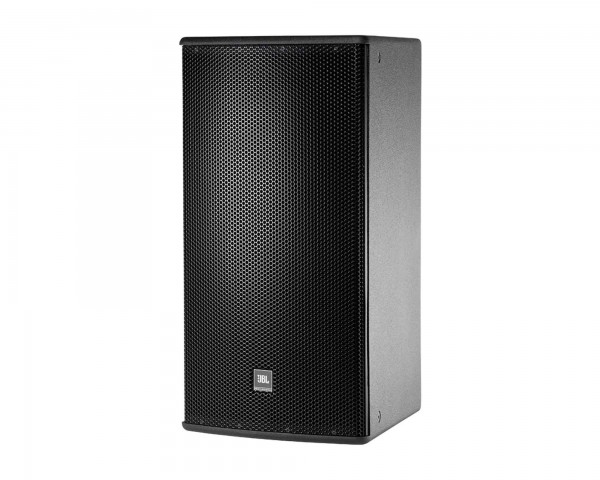

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Driver low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
Bi-Amp/Tri-Amp Switchable.
Finish: Black
Applications
Performing arts facilities
Theatrical sound design
Auditoriums
Houses of worship
Live clubs
Dance-clubs/discotheques
Sports facilities
Themed entertainment venues
Product Specifications
General
Coverage: 60° x 40°
Frequency Response (-10dB): 38 Hz – 20 kHz
Frequency Response (±3 dB): 45 Hz – 18 kHz
Coverage Pattern: /64: 60° x 40°, rotatable waveguide/95: 90° x 50°, rotatable waveguide
Directivity Index (DI): 13 dB
Crossover Modes: Tri-amp/Bi-amp switchable
Crossover Frequencies: 300 Hz and 2.3 kHz
Transducer Power Rating (AES):
LF:
1000 W (4000 W peak), 2 hrs
750 W (3000 W peak), 100 hrs
MF: 350 W (1400 W peak), 2 hrs
HF: 100 W (400 W peak), 2 hrs
System Power Rating:
LF: 600 W (2400 W peak), 100 hrs
MF/HF: 200 W (800 W peak), 100 hrs
Maximum SPL (1m):
LF: 127 dB-SPL cont avg (133 dB peak)
Tri-amp mode:
MF: 133 dB-SPL cont avg (139 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Bi-amp mode:
MF/HF: 133 dB-SPL cont avg (139 dB peak)
System Sensitivity of Passive Sections (1W @ 1m): MF/HF Section in Bi-amp mode: 108 dB SPL
Nominal Impedance: 8 ohms
LF Driver: 1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
Sensitivity (1W @ 1m) (Low Frequency): 97 dB SPL
MF Driver: JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
Sensitivity (1W @ 1m) (Midrange): 108 dB SPL
HF Driver: JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
Sensitivity (1W @ 1m)(High Frequency): 115 dB SPL
Input Connector: NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
Environmental: Mil-Std 810; IP-x3 per IEC529.
Nominal LF Driver Impedance: 8 ohms
Nominal MF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
Physical
Dimensions (H x W x D in vertical orientation): 967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
Net Weight (each): 45.8 kg (101 lb)
Finish: Black DuraFlex™ finish. White available upon request.
Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
