Wireless Microphone Systems
We do our best to keep healthy stocks across the many Wireless Microphone System SKUs but in the rare case where we don't have your required system in stock, please contact our sales team as we can often make your product to order by borrowing the system components (transmitters, receivers or mics) from other stocked systems.
Shopping Basket
The product has been added to your basket
Main Features
Provides an adjustable balanced line output (+12B max.) on a standard 3 pin male XLR connector
Typically used to connect an Outreach chain to third-party audio equipment such as conventional amplifiers
Can be connected to the balanced line level input of any audio system
Fully cascadable – up to ten outreach plates can be daisy-chained to one balanced line level input
Plates can be located at any convenient point on an installation
Standard two-pair audio cable is ideal for most applications

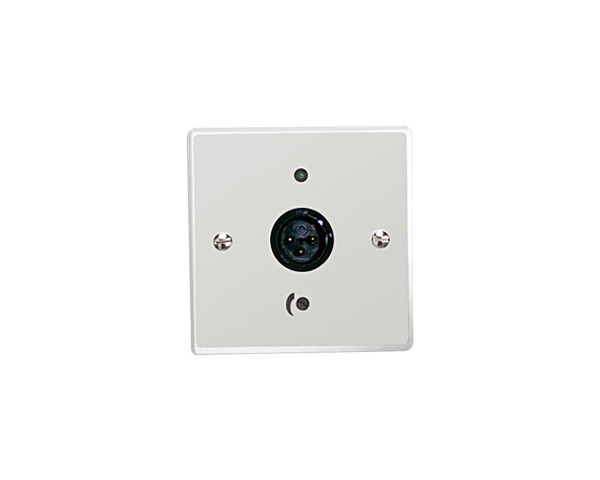

APXO Outreach Output Plate 3-Pin XLR Male Balanced Line Lvl
The APXO Outreach Output Plate provides an adjustable balanced line output (+12B max.) on a standard 3 pin male XLR connector. Typically used to connect an Outreach chain to third-party audio equipment such as conventional amplifiers.
SigNET's Outreach Plate audio input extension system comprises a range of wall, ceiling and desk mountable single gang audio input plates specifically designed to increase the audio input capability of an induction loop system. Covering the most common variants of audio connector, they work by mixing the signals from various audio input sources into one balanced line level input which can be fed into the line input of a compatible amplifier.
Mountable on 25mm back boxes, each plate features a built-in mixer, pre-amp, input level control and balanced output. The fact they can be installed at the most convenient point on an installation overcomes the need for long and potentially hazardous microphone/audio leads.
Typically, up to 10 Outreach plates (any mix) can be daisy-chained to one balanced line level input with cable lengths of up to 100m easily achievable using standard two-pair audio cable with no recognisable degradation of audio signal quality.
Each outreach plate requires four wires, two balanced line (A +, A –), one ground (0V) and one power connection (12-32 V DC regulated).
Product Features
Provides an adjustable balanced line output (+12B max.) on a standard 3 pin male XLR connector
Typically used to connect an Outreach chain to third-party audio equipment such as conventional amplifiers
Can be connected to the balanced line level input of any audio system
Fully cascadable – up to ten outreach plates can be daisy-chained to one balanced line level input
Plates can be located at any convenient point on an installation
Standard two-pair audio cable is ideal for most applications
Network lengths of 100m easily achievable with no degradation of sound quality
Built-in pre-amp, mixer and level controls included on all variants
Overcomes the need for excessively long microphone and audio leads
12-32V dc operation
+6dB overload capability
Surface mountable on 25mm UK single gang back boxes
Effectively acts as a multi-point distributed mixer with individual level controls
Optional wall-mounting ‘AFILS ACTIVE’ and magnetic field strength indicators available for use with audio-frequency induction loop systems
