ART 708-A MK5 8" + 1" Active 2-Way Loudspeaker 1400W Peak

« return to previous page

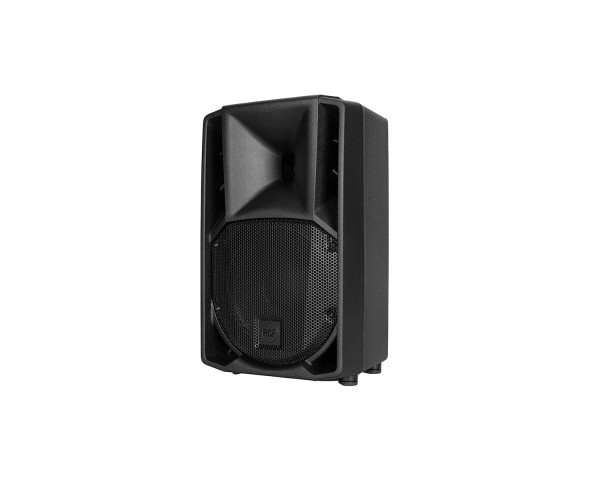

RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Main Image
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 1
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 2
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 3
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 4
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 5
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 6
RCF ART 708-A MK5 8 + 1 Active 2-Way Loudspeaker 1400W Peak - Image 7
Price:
RRP: £397.20 inc VAT
Code:
RCFART708MK5
Manufacturer Code:
13000821
Brand:
RCF

Quantity required:

Main Features

  • 128 dB Max SPL
  • 1400 WATT 2-way peak power
  • 90° x 70°, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 1,4" Compression Driver.
  • 8" Woofer
Share:

ART 708-A MK5 8" + 1" Active 2-Way Loudspeaker 1400W Peak

ART 708-A MK5 is a unique product in its category. The 1.4" compression driver offers unique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

Product Features

  • 128 dB Max SPL
  • 1400 WATT 2-way peak power
  • 90° x 70°, Wide dispersion constant directivity horn
  • Innovative DSP Processing
  • 1,4" Compression Driver.
  • 8" Woofer
  • FiRPHASE Technology
  • XBOOST Low Frequencies Enhancer

Product Specifications

Acoustical Specifications

  • Frequency Response:  45 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  128 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  70°

Transducers

  • Compression Driver:  1 x 1.0'', 1.4'' v.c
  • Woofer:  8'', 2.0'' v.c

Input/Output Section

  • Input signal:  bal/unbal
  • Input connectors:  XLR, Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu
  • Mic. Input Sensitivity:  -32 dBu

Processor Section

  • Crossover Frequencies:  1600
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Volume, Boost, MIC/Line

Power Section

  • Total Power:  1400 W Peak
  • High frequencies:  400 W Peak
  • Low frequencies:  1000 W Peak
  • Cooling:  Convection
  • Connections:  VDE

Standard Compliance

  • Safety agency:  CE compliant

Physical Specifications

  • Cabinet/Case Material:  PP Composite
  • Hardware:  2 x M10
  • Handles: 1 on top, 1 each side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black

Physical & Dimensions

  • Height:  480 mm / 18.9 inches
  • Width:  291 mm / 11.46 inches
  • Depth:  276 mm / 10.87 inches
  • Weight:  10.4 kg / 22.93 lbs

Product Downloads
