ART 912-AX 12" +1" Active 2-Way Speaker System + Bluetooth

« return to previous page

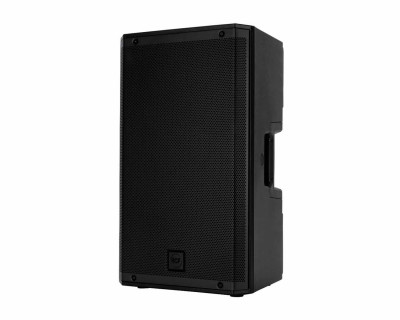

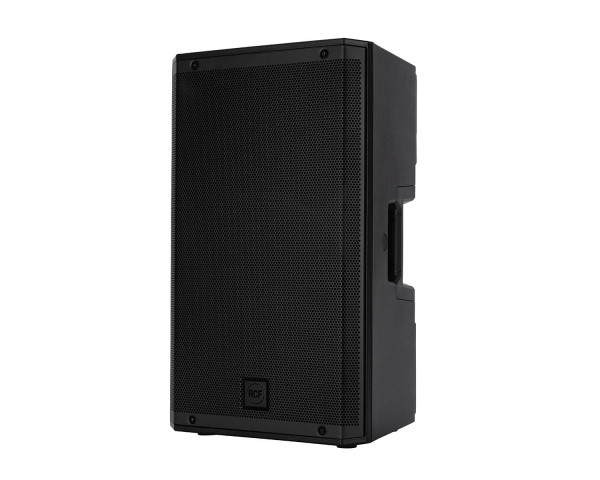

RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Main Image
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 1
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 2
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 3
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 4
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 5
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 6
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 7
RCF ART 912-AX 12 +1 Active 2-Way Speaker System + Bluetooth - Image 8
Price:
RRP: £880.80 inc VAT
Code:
RCFART912AX
Manufacturer Code:
13000708
Brand:
RCF

Quantity required:

Main Features

  • 2100W Class-D Bi-Amplification
  • Wide 100° x 60° Constant Directivity
  • Colour display with capacitive touch
  • Bluetooth® for Audio Streaming and Control
  • Smartphone app for remote control
  • 6-in, 2-out stereo digital mixer and output processing
Share:

ART 912-AX 12" +1.75" Active 2-Way Speaker System + Bluetooth

The ART 9 AX is an incredibly flexible tool for live events and presentations or venues like leisure centres or schools looking for a flexible solution without compromising on power. The ART 9 AX range comes fitted with the same cabinet, construction and advanced DSP, FiRPHASE and Bass Motion Control as the ART 9 series. The AX series features 6-in, 2-out stereo digital mixer & output processing as well as Bluetooth® and a Colour display with capacitive touch for Audio Streaming and Control.

The advanced woofer excursion management increases linearity and improves bass punch with a radical new approach. BMC extends the lowest audible frequency without affecting the transducer’s stability, limiting over-excursions for greater reliability and superior performance at high volume levels.

With 2100 Watts of power, the 2-channel ART 9 Class-D amplifier is 50% more powerful than previous models, able to manage extremely high sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss.

Product Features

  • 2100W Class-D Bi-Amplification
  • Up to 50 ÷ 20000 Hz linear frequency response
  • Wide 100° x 60° Constant Directivity
  • Up to 1800 Hz Crossover Frequency
  • True Resistive Waveguide for superb, distortion-free coverage
  • Road-proof Cabinet with M-Brace Reinforcement
  • Bass Motion Control and FiRPHASE processing
  • Bluetooth® for Audio Streaming and Control
  • Smartphone app for remote control
  • 6-in, 2-out stereo digital mixer and output processing
  • Internal digital mixer and crossover for RCF subwoofers
  • Colour display with capacitive touch
  • 130 dB SPL
  • 12" Woofer

Product Specifications

ART 9-AX Series

Processor section

  • Controls:  Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.

Electronic specifications

  • Frequency Response:  20 Hz ÷ 20 kHz
  • THD+N, 20dB gain, 0dBu out 0.005% A-Weighted

Processing

  • Processing Channels:  6
  • Signal Processing:  24 Bit
  • A/D-D/A conversion:  32 Bit @ 48.0 kHz
  • Dynamic Range:  110

Inputs

  • Mic:  2
  • Remote controlled storable gain:  Yes
  • Gain Range:  0 dB ÷ 42 dB
  • Input Noise Level:  -114 dBu A-Weighted
  • Mic Inputs Impedance:  6 kohm
  • Low Cut:  20 Hz ÷ 400 Hz
  • Phantom Power +48V:  Yes
  • Mono Line:  2
  • Gain Selection:  0 dB ÷ 22 dB
  • Line Input Impedance:  21 kohm
  • A/D Dynamic range:  114 dB
  • Stereo Line:  1
  • Gain Selection:  0 dB ÷ 10 dB
  • Stereo Line Input Impedence:  13 kohm

Outputs

  • Main MIX:  1
  • Outputs specifications
  • Main Out Impedance:  150 ohm
  • Main Out Level:  22 dBu
  • D/A Dynamic Range:  114 dB

Compressors

  • RCF Compressors:  Compressors on MIC/LINE CH1 & CH2 inputs

EQ

  • Input Channels EQ:  2 Shelving 1
  • Description:  3 Band EQ:  High and Low band shelving, MID band peak on IN
  • 5 Band EQ:  4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN  output

Internal Effects

  • Send Effects:  1

Mastering processors

  • Main OUT type:  Mix out, Crossover out with RCF Subwoofers presets, Stereo output, CH1 Link out



ART 912-AX

Acoustical specifications

  • Frequency Response:  50 Hz ÷ 20 kHz
  • Max SPL @ 1m:  130 dB
  • Horizontal coverage angle:  100°
  • Vertical coverage angle:  60°

Transducers

  • Compression Driver:  1'', 1.75'' v.c
  • Woofer:  12', 2.5'' v.c

Input/Output section

  • Input signal:  bal/unbal
  • Input connectors:  XLR, Jack
  • Output connectors:  XLR
  • Input sensitivity:  -2 dBu/+4 dBu

Processor section

  • Crossover Frequencies:  1800 Hz
  • Protections:  Thermal, RMS
  • Limiter:  Soft Limiter
  • Controls:  Linear, Boost, Stage, Volume

Power section

  • Total Power:  2100 W Peak
  • High frequencies:  700 W Peak
  • Low frequencies:  1400 W Peak
  • Cooling:  Convection
  • Connections:  VDE

Standard compliance

  • CE marking:  Yes

Physical & Dimensions

  • Cabinet/Case Material:  PP Composite
  • Hardware:  1 x M10 Top, 1 x M10 each side
  • Handles:  1 Top , 1 each side
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black
  • Height:  642 mm / 25.28”
  • Width:  370 mm / 14.57”
  • Depth:  363 mm / 14.29”
  • Weight:  19 kg / 41.89 lbs
