ASB6115 15" Compact High-Power Subwoofer 800W

« return to previous page

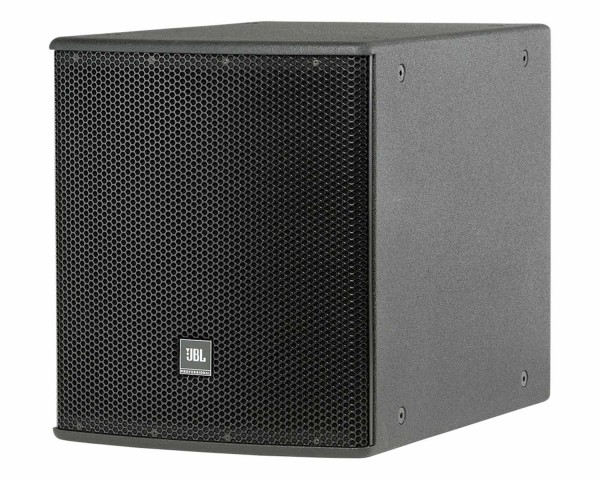

JBL ASB6115 15 Compact High-Power Subwoofer 800W - Main Image
JBL ASB6115 15 Compact High-Power Subwoofer 800W - Image 1
JBL ASB6115 15 Compact High-Power Subwoofer 800W - Image 2
Price:
RRP: £3,126.00 inc VAT
Code:
JBLASB6115
Manufacturer Code:
JBL0892
Brand:
JBL

Quantity required:

Main Features

  • 2265H-1 15" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 800 watts continuous pink noise
  • 3200 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications
Share:

ASB6115 15" Compact High-Power Subwoofer

The ASB6115 is a high power, lightweight front-loaded vented subwoofer enclosure housing JBL’s 2265H-1 Differential Drive® dual voice coil dual gap 15” woofer. This woofer features neodymium magnet and ultra-robust cone for extra-long life.

The enclosure is constructed of multiply hardwood coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximise low-frequency performance. The rectangular enclosure is fitted with sixteen M10 threaded attachment points and utilises a 14-gauge steel grille internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

The ASB6115 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Product Features

  • 2265H-1 15" Differential Drive® dual voice coil dual gap, neodymium magnet transducer
  • 800 watts continuous pink noise, 3200 watts peak power handling capacity
  • Large vent area for high output with low distortion
  • For ground-stacked or suspended applications in stand-alone arrays or in combination with other AE Series products

Applications

  • Performing Arts Facilities
  • Theatrical Sound Design
  • Auditoriums
  • Worship Facilities
  • Live Clubs
  • Dance Clubs
  • Sports Facilities
  • Themed Entertainment Venues

Product Specifications

General

  • Frequency Range (-10 dB): 32 Hz - 1 kHz
  • Frequency Response (± 3 dB): 42 Hz - 1 kHz
  • Transducer Power Rating: 800 W (3200 W peak), 2 hrs.
  • Long-Term System Power Rating: 675 W (2700 W peak), 100 hrs.
  • Maximum SPL (1m): 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
  • System Sensitivity: 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
  • Nominal Impedance: 8 ohms
  • Low Frequency Driver: 1 x 2265H-1, 380 mm (15 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive® driver
  • Enclosure: Rectangular cabinet, 16 mm (5/8 in) exterior grade 11-ply birch plywood
  • Suspension Attachment: 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
  • Finish: Black DuraFlex™ finish. White available upon request.
  • Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
  • Input Connector: NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
  • Environmental Specifications: Mil-Std 810; IP-x3 per IEC529

Physical & Dimensions

  • Height: 483mm
  • Width: 419mm
  • Depth: 597mm
  • Weight: 20.6kg
