AT4050ST Stereo Condenser Mic With Stand and Shock Mount

« return to previous page

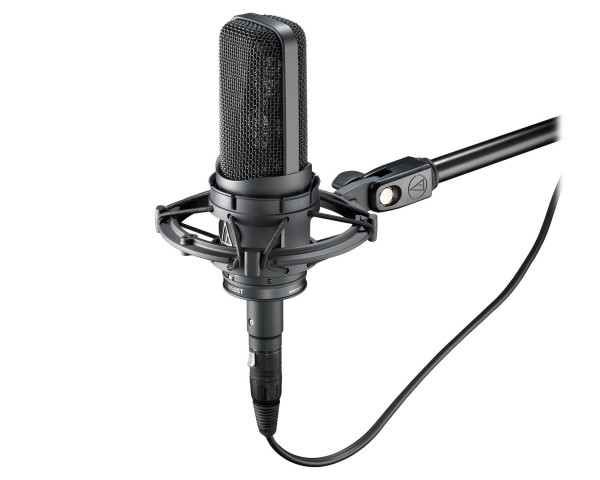

Audio Technica AT4050ST Stereo Condenser Mic With Stand and Shock Mount - Main Image

Audio Technica AT4050ST Stereo Condenser Mic With Stand and Shock Mount - Image 1

Audio Technica AT4050ST Stereo Condenser Mic With Stand and Shock Mount - Image 2

Audio Technica AT4050ST Stereo Condenser Mic With Stand and Shock Mount - Image 3

Price:: RRP: £1,369.00 inc VAT
Code:: AUDAT4050ST
Manufacturer Code:: AT4050ST
Brand:: Audio Technica

Main Features

A professional side-address condenser studio microphone
Features independent cardioid and figure-of-eight condenser element
Engineered for professional recording, broadcast and sound reinforcement
Comes with its very own AT8449 shock mount, hard shell protective carry case
Switch selection of Mid-Side mode and two internally matrixed stereo modes
Alternative versions available: AT4050SM and AT4050SC

AT4050ST Stereo Condenser Mic

Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.

Product Features

Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement
Independent cardioid and figure-of-eight condenser elements
Switch selection of Mid-Side mode and two internally matrixed stereo modes
Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
Integral 80 Hz high-pass filter switch and 10 dB pad switch
State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards
Custom shock mount provides superior isolation

Product Specifications

General

Element: Externally-polarized (DC bias) condenser
Polar Pattern: Cardioid, Figure-of-eight, M/S
Frequency Response: 20 - 18,000 Hz
Open Circuit Sensitivity:
- Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa
- Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa
- Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa
- Side: -36 dB (15.8 mV) dB re 1V at 1 Pa
Impedance: 50 ohms
Maximum Input Sound Level: Mid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.;159 dB SPL, with 10 dB pad (nominal)
Noise:
- Stereo 90°: 25 dB SPL
- Stereo 127°: 16 dB SPL
- Mid: 15 dB SPL
- Side: 17 dB SPL
Low Frequency Roll Off: 80 Hz, 12 dB/octave
Switches: 90°, 127°, M-S; Flat, roll-off; 10 dB pad (nominal)
Dynamic Range:
- Mid: 134 dB, 1 kHz at Max SPL
- Side: 132 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio:
- Stereo 90°: 69 dB, 1 kHz at 1 Pa
- Stereo 127°: 78 dB, 1 kHz at 1 Pa
- Mid: 79 dB, 1 kHz at 1 Pa
- Side: 77 dB, 1 kHz at 1 Pa
Phantom Power Requirements: 48V DC, 6.4 mA typical (both channels total)
Output Connector: Integral 5-pin XLRM-type
Cable: 5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
Audio-Technica Case Style: R1
Accessories Included: AT8449a shock mount for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; microphone dust cover; protective carrying case
