ATLK-EX165 Link Extender with 2 x RJ45 Ports

« return to previous page

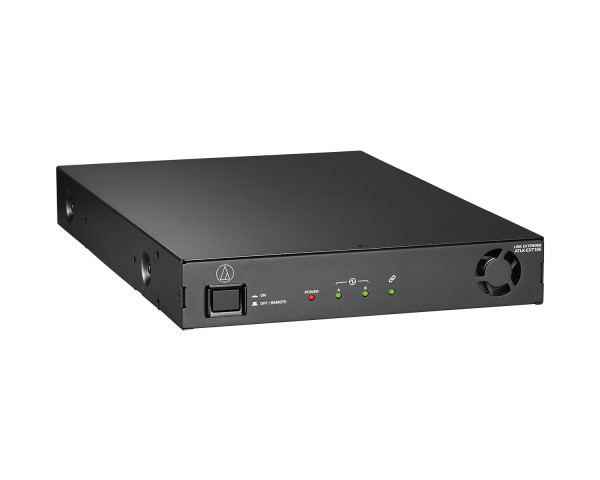

Audio Technica ATLK-EX165 Link Extender with 2 x RJ45 Ports - Main Image
Audio Technica ATLK-EX165 Link Extender with 2 x RJ45 Ports - Image 1
Audio Technica ATLK-EX165 Link Extender with 2 x RJ45 Ports - Image 2
Audio Technica ATLK-EX165 Link Extender with 2 x RJ45 Ports - Image 3
Audio Technica ATLK-EX165 Link Extender with 2 x RJ45 Ports - Image 4
Price:
RRP: £966.00 inc VAT
Code:
AUDATLKEXT165
Manufacturer Code:
ATLK-EXT165
Brand:
Audio Technica

Quantity required:

Main Features

  • 2x RJ45 ports for connecting to other discussion system components
  • Supplies DC 48V power to connected devices, enabling extended cable runs
  • Mode switch for selection of local or remote operation
  • LED indicators for power on/off, power supply to linked devices and link status
  • Internal AC power supply
Share:

ATLK-EX165 Link Extender with 2 x RJ45 Ports

Link Extender. ATLK-EXT165 Link Extender - 2x RJ45 ports for connecting to other discussion system components, Supplies DC 48V power to connected devices, enabling extended cable runs and Mode switch for selection of local or remote operation.

The Link Extender is used to extend the cable runs on ATUC conference systems by providing additional power (upto 165 Watt) to the system. It has two RJ45 ports and will be linked in between the ring or daisy chain of connected DU to feed into both directions (forward and backwards). This device is useful when longer cable runs are needed. With the ATLK-EXT165 you can use up to 100 ATUC-50DUs, instead of only 50 ATUC-50DUs, and connect them with only one ATUC-50CU.

Product Features

  • 2x RJ45 ports for connecting to other discussion system components
  • Supplies DC 48V power to connected devices, enabling extended cable runs
  • Mode switch for selection of local or remote operation
  • LED indicators for power on/off, power supply to linked devices and link status
  • Internal AC power supply

Product Specifications

  • Connections:  Outputs: LINK power status
  • Chain: DU port A/B
  • Power Supply:  AC 100V-240V 50/60Hz
  • Power Consumption:  15W-160W (MAX)
  • Operating Temperature Range:  0-40℃
  • Operating Humidity:  25-85%
  • Dimensions:  217mm x 326mm x 41mm
  • Weight:  2.2kg

What's in the Box?

  • AC power cord
  • Quick Setup Guide
  • Euroblock connector (1pcs)
  • Table mount kit
  • Warranty Sheet
