Main Features
Reversible module for 8-bay 2U converter rack (sold separately)
Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.4 type A with locking system
Audio Input: 2 x Balanced +4dB XLR (analog) each with a 3-segment LED meter

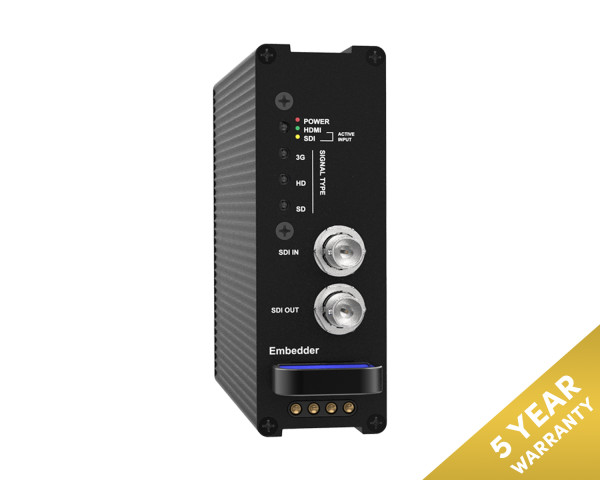

Audio Embedder Reversible Module HDMI1.2/3G-SDI + Audio to 3G-SDI
The SDI Audio Embedder Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.
The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.
Product Features
Reversible module for 8-bay 2U converter rack (sold separately)
Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.4 type A with locking system
Audio Input: 2 x Balanced +4dB XLR (analog) each with a 3-segment LED meter
Video Input: 1 x 3G/HD/SD SDI BNC
Video Output: 1 x 3G/HD/SD SDI BNC
Automatically detects incoming signal format
Product Specifications
Connections
Video Input:
Auto switching between 1 x 3G/HD/SD SDI
BNC & 1 x HDMI 1.4 type A with locking system
Audio Input: 2 x Balanced +4dB XLR (analog) each with a 3-segment LED meter
Video Output: 1 x 3G/HD/SD SDI BNC
Supported Signals
3G Format Support: 1080p50, 1080p59.94, 1080p60
HD Format Support:
720p50, 720p59.94, 720p60, 1080i50,
1080i59.94, 1080i60, 1080p23.98,
1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
1080PsF25, 1080p29.97, 1080PsF29.97,
1080p30, 1080PsF30
SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
SDI Video Sampling: 4:2:2 and 4:4:4
SDI Audio Sampling: Sample rate of 48 kHz and 24 bit
SDI Colour Space: YUV and RGB
SDI Auto Switching: Automatically detects incoming signal format
Embedding to: SDI Channels 1 & 2
SMPTE Standards: 425M Level A & B, 424M Level A, 292M, 259M
Environmental Specifications
Relative Humidity: 0% to 90% non-condensing
Operating Temperature: 0-40 °C
Power Requirements
Power Supply: Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
