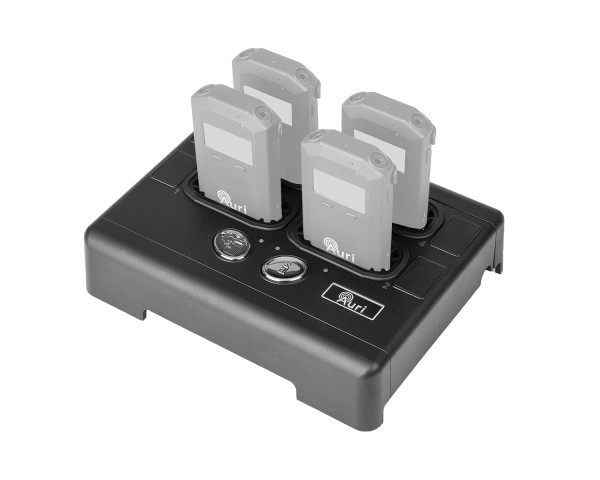

AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers

« return to previous page
Listen Technologies AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers - Main Image
Listen Technologies AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers - Image 1
Listen Technologies AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers - Image 2
Listen Technologies AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers - Image 3
Listen Technologies AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers - Image 4
Price:
RRP: £571.20 inc VAT
Code:
LISAURID4
Manufacturer Code:
AURI-D4-0
Brand:
Listen Technologies

Quantity required:

Main Features

  • Tabletop Charging/Docking Station
  • Designed for Auri Receivers
  • Fits up to 4 Auri Receivers
  • Network capability
  • Receiver configuration storage
  • Centralized programming & configuration
Share:

AURI-D4 Auri Docking Station 4 for 4 x Auri Receivers

The Auri™ Docking Station 4 is designed for flat surfaces and wall mounting, with four slots respectively. But these docks are more than chargers – they offer network capability and can store receiver configurations, enabling centralized management, programming, and configuration.

Product Features

  • Tabletop Charging/Docking Station
  • Designed for Auri Receivers
  • Fits up to 4 Auri Receivers
  • Network capability
  • Receiver configuration storage
  • Centralized programming & configuration

Product Specifications

  • Network
    • Port Speed:  100 Mbit
    • IP Address:  DHCP, static or link-local
    • Protocols:  mDNS, UDP (unicast), RTP (multicast), RTCP (multicast)
    • Security:  UDP communication AES256-GCM
  • Controls and Indication
    • Buttons:  Copy and Status Buttons, Recessed restart and factory reset buttons
    • Setup/Programming:  Via Auri™ Manager Software over network
    • LEDs:  Copy LED (red) and Status LED (amber), see handbook for states
  • Power
    • Power Supply Input:  100-240 VAC, 50-60 Hz
    • Power Supply Output:  12 VDC, 4.0 A, 48 W
    • Power Supply Connector:  5.5 mm (.22 in) OD x 2.3 mm (.09 in.) ID, barrel type
    • Power Cable:  1.8 m (72 in.) Input Power Cable, 1.1 m (43 in.) Output Cable
  • Physical
    • Dimensions:  Auri-D4 – 50 x 192 x 150 mm (1.97 x 7.56 x 5.89 in.)
    • Unit Capacity:  4 Units
    • Weight:  Auri-D4 – 0.65 kg (1.43 lbs.)
    • Colour:  Black with Chrome Buttons
    • Mounting:  Place on flat surface or use wall mounting slots
  • Environmental
    • Temperature - Storage:  -40 °C (-40 °F) to 70 °C (+158 °F)
    • Temperature - Operation:  -10 °C (14 °F) to 40 °C (+104 °F)
    • Relative Humidity:  0 to 95% relative humidity, non-condensing
    • IP Rating:  IP20
  • Compliance
    • Standards CE, UKCA, RCM, REACH, WEEE
  • Network Requirements
    • Device Discovery:  Type: mDNS (Multicast), Address: 224.0.0.251, Port: 5353
    • Control:  Type: UDP (Unicast), Address: Device IP (DHCP, Static, or Link Local), Port: 55666, 56666
    • Firmware Update:  Type: TFTP, Address: Device IP, Port: 69

What's in the Box?

  • 1 x AURI-D4 Auri Docking Station 4
  • 1 x LA-210 Power Supply
  • 1 x Quick Start Guide
  • 1 x Safety Data Sheet
