Bassbone OD Bass Preamp and Overdrive

« return to previous page

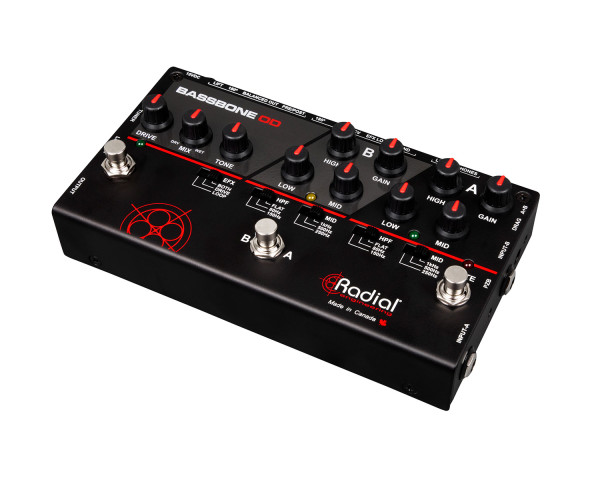

Radial Bassbone OD Bass Preamp and Overdrive - Main Image
Radial Bassbone OD Bass Preamp and Overdrive - Image 1
Radial Bassbone OD Bass Preamp and Overdrive - Image 2
Radial Bassbone OD Bass Preamp and Overdrive - Image 3
Radial Bassbone OD Bass Preamp and Overdrive - Image 4
Radial Bassbone OD Bass Preamp and Overdrive - Image 5
Radial Bassbone OD Bass Preamp and Overdrive - Image 6
Radial Bassbone OD Bass Preamp and Overdrive - Image 7
Radial Bassbone OD Bass Preamp and Overdrive - Image 8
Radial Bassbone OD Bass Preamp and Overdrive - Image 9
Price:
RRP: £534.97 inc VAT
Code:
RADBASSOD
Manufacturer Code:
R800-7072-00
Brand:
Radial

Quantity required:

Main Features

  • Two full function channels with EQ
  • Mute footswitch for quiet on-stage tuning
  • Bass overdrive with wet-dry control
  • Built-in Radial direct box
  • Lets you quickly toggle between two basses
  • Balanced out for studio recording or PA
Share:

Bassbone OD Bass Preamp & Overdrive

The Bassbone OD™ is a bass command center with two instrument input channels that are fully equipped with a semi-parametric equalizer and high-pass filter to eliminate low frequency resonance. Channel-A is set with a 22k-Ohm input impedance that is ideally suited for both passive and active basses. This is supplemented with a PZB booster that at once increases the output by 10dB and the load to 10 meg-Ohms to optimize it for use with piezo transducers. Channel-B is equipped with Drag™ control load correction to optimize the tone and feel when using a vintage passive instrument. Toggling between channels is done using a footswitch and both channels may be mixed together by engaging the Blend switch. Outputs include a ¼" stage amp out plus a balanced low-Z Radial DI box output to feed the PA system. A separately buffered tuner out works with the mute footswitch for quiet on-stage tuning. An effects loop with separate send & receive jacks enables multiple pedals to be used. This is augmented with an on-board overdrive with a wet-dry control that lets you add slight grit like an SVT or over the top distortion. The OD footswitch may be assigned to the loop, overdrive or both. Finally, a built-in headphone amp with 3.5mm output lets you use the Bassbone OD on the bus for those long drives between gigs.

Product Features

Features

  • Two full function channels with EQ
  • Mute footswitch for quiet on-stage tuning
  • Bass overdrive with wet-dry control
  • Built-in Radial direct box

Benefits

  • Lets you quickly toggle between two basses
  • Balanced out for studio recording or PA
  • Headphone amp lets you practice anytime
  • Great for active, passive and upright bases

Cool Stuff

  • Use it like a two channel bass amp
  • Add overdrive for sustain without being too loud
  • Can be used on any instrument, not just bass
  • 15V DC supply has tons of headroom

Product Specifications

  • Audio circuit type:  Discrete and integrated, class-A circuits
  • Frequency response:20Hz ~ 18kHz (tailored for bass instruments)
  • Total harmonic distortion:  005% @ -15dBu
  • Inter-modulation distortion:  02% @ -20dBu
  • ¼" Input impedance (1/4" input-A):220k megΩ (PZB off) 10 megΩ (PZB on)
  • ¼" Input impedance (1/4" input-B with Drag control):  Variable, 22kΩ ~ 18 megΩ
  • ¼" Output:  High-Z instrument-level
  • 35mm output:  Headphone-level, mono with dedicated volume control
  • XLR output:  Balanced mic-level, AES standard (pin-2 hot)
  • Ground lift (XLR direct out):  Disconnects pin-1 at the XLR output
  • Power:   +15VDC/400mA adapter included
  • Construction:   14 gauge steel, powder-coat finish
  • Size:  42" x 8" x 2" (107 x 203 x 48mm)
  • Weight:  255lb (113kg)
  • Shipping Size:  5"x275"x1075" (127x70x273mm)
  • Shipping Weight:  28lb (127kg)
  • Conditions:  For use in dry locations only between 5°C and 40°C
