Bassbone V2 Bass Preamp and Boost

« return to previous page

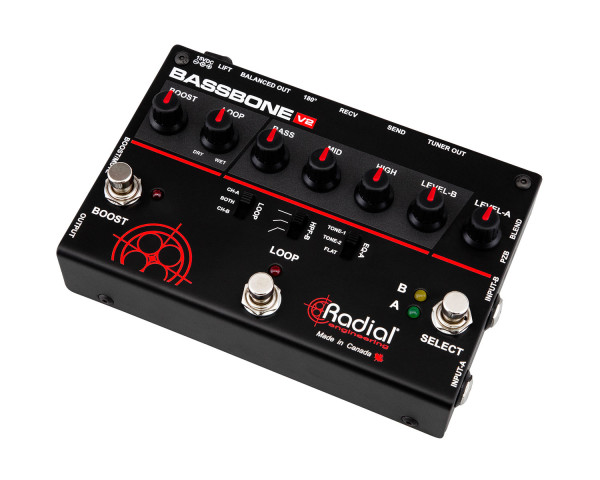

Radial Bassbone V2 Bass Preamp and Boost - Main Image
Radial Bassbone V2 Bass Preamp and Boost - Image 1
Radial Bassbone V2 Bass Preamp and Boost - Image 2
Radial Bassbone V2 Bass Preamp and Boost - Image 3
Radial Bassbone V2 Bass Preamp and Boost - Image 4
Radial Bassbone V2 Bass Preamp and Boost - Image 5
Radial Bassbone V2 Bass Preamp and Boost - Image 6
Radial Bassbone V2 Bass Preamp and Boost - Image 7
Radial Bassbone V2 Bass Preamp and Boost - Image 8
Price:
RRP: £465.19 inc VAT
Code:
RADBASSV2
Manufacturer Code:
R800-7071-00
Brand:
Radial

Quantity required:

Main Features

  • 2 channels for two tones or two basses
  • PZB piezo boost for upright bass
  • Powerful EQ for tone shaping
  • Built-in effects loop and DI box
  • Switch between two basses on stage
  • Lets you perform without an amp
Share:

Bassbone V2 Bass Preamp & Boost

The Bassbone V2 is a bass command center that enables one to seamlessly switch between any two bass guitars including active, passive (magnetic) and upright (piezo). When the PZB booster is engaged, the PZB activates a special boost circuit for piezo transducers that at once increases the sensitivity and impedance to 10 meg-Ohms, this results in a much wider frequency response. Two channels let you set up each instrument with their own tone and signal level. Channel-1 features two preset tones that will bring a modern vibe to older vintage amps. Channel-2 features a powerful passive-interactive EQ that lets you carve out any tone. When Input-2 is not in use the Bassbone reverts to a 2-channel preamp that lets you create two completely different tones with one bass. A built-in effects loop lets you to share pedals with both basses and this is supplemented with a variable power booster for solos and a mute switch for quiet-on-stage tuning. A built-in Radial DI box delivers the performance to the PA or recording system.

Product Features

Features

  • 2 channels for two tones or two basses
  • PZB piezo boost for upright bass
  • Powerful EQ for tone shaping
  • Built-in effects loop and DI box

Benefits

  • Switch between two basses on stage
  • Lets you perform without an amp
  • Delivers your tone to the PA system
  • Puts you in control of your sound

Cool stuff

  • Works equally well in studio as it does live
  • Mute switch for quiet tuning on stage
  • Can make any bass sound dramatically different
  • Super compact yet extremely powerful

Product Specifications

  • Audio circuit type:  Discrete class-A FET input with low noise ICs.
  • Frequency response:  20Hz ~ 18kHz
  • Total harmonic distortion:  0.05% @ -15dBu
  • Intermodulation distortion:  0.2% @ -20dBu
  • Dynamic range:  85dB
  • Input impedance:  Input A:  220K
  • Input impedance:  Input B:  220K/10M
  • Output impedance:  300 Ohms at XLR
  • Maximum input:  +7 dBu
  • Gain:  +10dB
  • Boost Gain:  0 to 12 dB, Variable
  • Noise floor:  -100dB
  • Equivalent input noise:  -92dBu at XLR
  • HPF-2 high pass filter:  Flat, 60Hz and 80Hz (-3 dB/Octave)
  • XLR configuration:  Pin 2 +, Pin 3 -, Pin 1 Ground
  • Ground lift:  Lifts pin-1 on the XLR
  • Power:  +15VDC/400mA adapter included
  • Construction:  14 gauge steel
  • Finish:  Powder-coat
  • Size:  (L x W x D) 5.5" x 4.2" x 2" (203 x107 x 48mm)
  • Weight:  2.55lb (1157 grams)
  • Conditions:  Use in dry locations only between 5°C and 40°C
