*B-GRADE* BS677WT 100V/6W Speaker c/w Volume Control

« return to previous page
Clearance

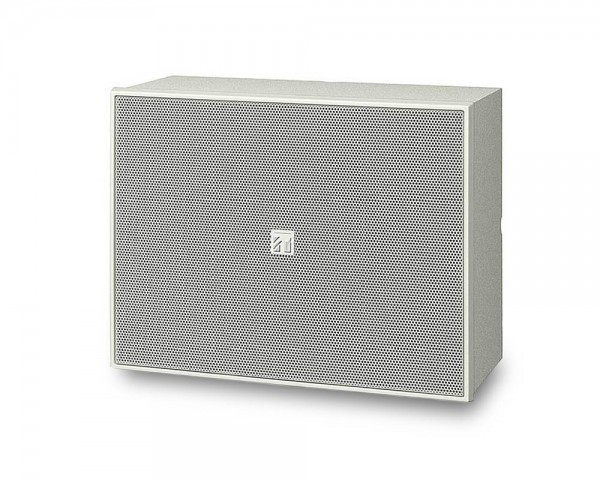

TOA *B-GRADE* BS677WT 100V/6W Speaker c/w Volume Control - Main Image
Price:
RRP: £30.24 inc VAT
Code:
TOABS677WTBG
Manufacturer Code:
BS-677WT B-GRADE
Brand:
TOA

Quantity required:

Main Features

  • *B-GRADE*
  • Stylish, compact and unobtrusive design
  • Quick and easy installation
  • High cost-effectiveness
  • Horizontal / vertical installation
  • Ideally suited for BGM and announcements
Share:

*B-GRADE* BS-677WT 100V/6W Speaker c/w Volume Control White

The BS-678 is a double-cone type speaker with a wooden cabinet that has a stylish, compact and unobtrusive design and that delivers highly cost-effective performance. A push-in type input connector allows easy cable connections and bridge wiring. The selectable input impedance can be easily adjusted by changing the tap position

of the unit’s transformer. 6″ (16cm) double cone speaker unit ensures high-quality sound, making the BS-678 ideal for BGM and announcement applications. It can be installed in either a horizontal or a vertical orientation. Its structure permits direct wall installation with screws, making the speaker unit resistant to falling even if outward force is applied to it.

Product Features

  • *B-GRADE*
  • Stylish, compact and unobtrusive design
  • Quick and easy installation
  • High cost-effectiveness
  • Horizontal / vertical installation
  • Ideally suited for BGM and announcements

Product Specifications

General

  • Input: Rated 6W
  • Input Impedance: 1.7k Ω (6W) / 3.3k Ω (3W) / 6.7k Ω (1.5W) / 13k Ω (0.8W)
  • Sound Pressure Level: 330 ~ 3,300Hz, 91dB / W / M pink noise input
  • Frequency Response: 100 ~ 10,000Hz (-20dB from peak of SPL)
  • Speaker Component: 12cm dynamic cone type speaker

Physical & Dimensions

  • Height: 250mm
  • Width: 190mm
  • Depth: 100mm
  • Weight: 1.4kg
  • Finish: Enclosure; Vinyl chloride particle board, White

What's in the Box?

  • 1x BS677WT 100V/6W Speaker c/w Volume Control White
