xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI

« return to previous page

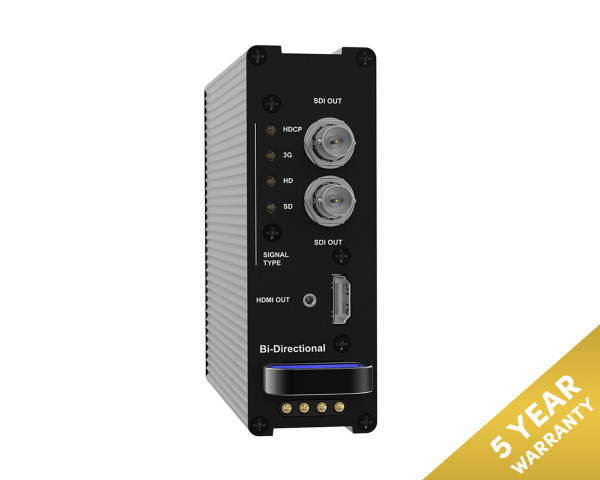

Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Main Image
Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Image 1
Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Image 2
Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Image 3
Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Image 4
Theatrixx xVision Reversible Bidirectional Video Converter HDMI1.2 - 3G-SDI - Image 5
Price:
RRP: £757.09 inc VAT
Code:
THERMSXH
Manufacturer Code:
XVVRM-SDIXHDMI
Brand:
Theatrixx

Quantity required:

Main Features

  • Reversible module for 8-bay 2U converter rack (sold separately)
  • SDI/HDMI Bidirectional
  • Video Input: Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A
  • Video Output: 1 x HDMI 1.2 type A with locking system, 2 x 3G/HD/SD SDI BNC
  • Input Priority: SDI input
  • SDI Video Sampling:  4:2:2 and 4:4:4
Share:

Bidirectional Reversible Module HDMI1.2/3G-SDI to 3G-SDI+HDMI1.2

The SDI/HDMI Bidirectional Reversible Module fits in the 8-Bay Reversible Rackmount Converter system.

The module can be inserted in the 8-Bay Frame in either direction, allowing the inputs/outputs to be positioned either at the front or the back of the unit depending on the application. There are no exposed PCBs as all modules are enclosed, and therefore protected against static shock, dust and general wear and tear. Gold-plated, redundant spring pins with magnetic retention deliver DC power to the modules, meaning no messy cabling and external power bricks are needed.

Product Features

  • Reversible module for 8-bay 2U converter rack (sold separately)
  • SDI/HDMI Bidirectional
  • Video Input: Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A
  • Video Output: 1 x HDMI 1.2 type A with locking system, 2 x 3G/HD/SD SDI BNC
  • Input Priority: SDI input
  • SDI Video Sampling:  4:2:2 and 4:4:4

Product Specifications

Connections

  • Video Input:  Auto switching between 1 x 3G/HD/SD SDI BNC & 1 x HDMI 1.2 type A with locking system
  • Video Output:  1 x HDMI 1.2 type A with locking system, 2 x 3G/HD/SD SDI BNC
  • Input Priority:  SDI input

Supported Signals

  • 3G Format Support:  1080p50, 1080p59.94, 1080p60
  • HD Format Support:
    • 720p50, 720p59.94, 720p60, 1080i50,
    • 1080i59.94, 1080i60, 1080p23.98,
    • 1080PsF23.98, 1080p24, 1080PsF24, 1080p25,
    • 1080PsF25, 1080p29.97, 1080PsF29.97,
    • 1080p30, 1080PsF30
  • SD Format Support:  525/23.98 NTSC, 525/29.97 NTSC.625/25 PAL
  • SDI Video Sampling:  4:2:2 and 4:4:4
  • SDI Audio Sampling:  Sample rate of 48 kHz and 24 bit
  • SDI Colour Space:  YUV and RGB
  • SDI Auto Switching:  Automatically detects incoming signal format
  • SMPTE Standards:  425M Level A & B, 424M Level A, 292M, 259M

Environmental Specifications

  • Relative Humidity:  0% to 90% non-condensing
  • Operating Temperature:  0-40 °C

Power Requirements

  • Power Supply:  Reversible redundant power fed by XVVRF8 (8-Bay Rackmount Frame)
  • Power Consumption:  20W
  • Voltage Range:  12VDC

Physical Specifications

  • Height:  121.5mm (4.78in)
  • Depth:  225mm (8.85in)
  • Width:  41mm (1.61in)
  • Weight:  710g (1.56lbs)
