BigShot ABY True-Bypass Amp Switcher Footswitch

« return to previous page
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Main Image
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 1
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 2
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 3
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 4
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 5
Radial BigShot ABY True-Bypass Amp Switcher Footswitch - Image 6
Price:
RRP: £151.18 inc VAT
Code:
RADBSABY
Manufacturer Code:
R800-7210-00
Brand:
Radial

Quantity required:

Main Features

  • True bypass ABY amp selector with tuner out
  • On-board transformer to eliminate ground buzz
  • 180° polarity reverse to phase-align amps
  • Bright LED status indicators
  • Switch or combine two amps
  • Switch between two instruments and one amp
Share:

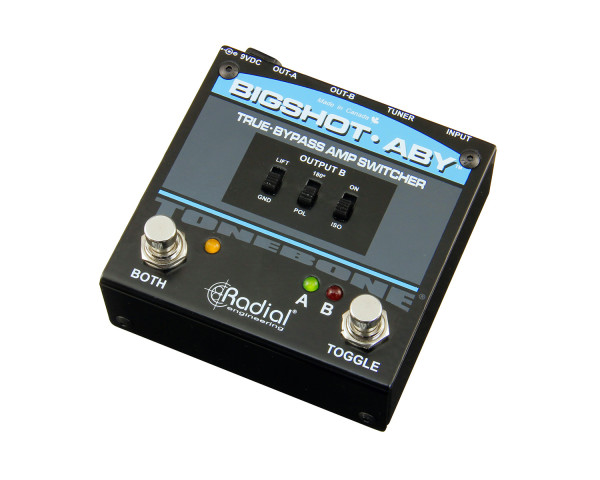

BigShot ABY True-Bypass Amp Switcher

The BigShot ABY is an ultra compact, 100% passive foot switch that provides ABY amp switching capabilities with A or B toggle and A + B combine functionality. It features ‘straight wire’ true-bypass connectivity for the purist. This assures the guitar signal is routed directly to the amp without any buffering, loading or tone altering circuits.

To add versatility, the BigShot ABY has a built-in transformer that can be engaged to eliminate troublesome ground loops. Once engaged, you can use the 180º polarity reverse switch to ensure your amps are in-phase. An additional tuner output is offered allowing you to split the input signal and send it to another device.

When powered by an external 9V power supply or pedalboard power brick, full sized LED’s provide instant on-stage amplifier status. The compact yet ultra rugged design makes the BigShot ABY ideal for pedalboards where space is always at a premium.

Product Features

Features

  • True bypass ABY amp selector with tuner out
  • On-board transformer to eliminate ground buzz
  • 180° polarity reverse to phase-align amps
  • Bright LED status indicators

Applications

  • Switch or combine two amps
  • Switch between two instruments and one amp
  • Tuner output is always on for quick adjustments

Cool Stuff

  • Plug and play easy to use
  • 100% passive audio circuit
  • Compact and rugged, perfect for pedalboards
  • Works with all instruments: guitar, bass, keys

Product Specifications

  • Dimensions (W x D x H):  3.6” x 4” x 2” (92mm x 100mm x 51mm)
