Blazor Rotating Mirror Barrel Multi-Effects LED 115W

« return to previous page

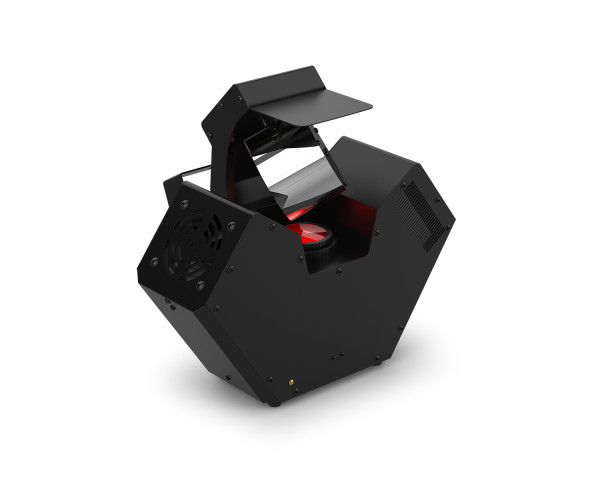

CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Main Image
CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Image 1
CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Image 2
CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Image 3
CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Image 4
CHAUVET DJ Blazor Rotating Mirror Barrel Multi-Effects LED 115W - Image 5
Price:
RRP: £358.80 inc VAT
Code:
CHABLAZOR
Manufacturer Code:
BLAZOR
Brand:
CHAUVET DJ

Quantity required:

Main Features

  • Barrel LED effect light fitted with a 115W LED projects multicoloured rotating gobos
  • Increase design flexibility and effects with inter-changeable gobos
  • Provide wide coverage using the rotating mirror barrel plus mirror dish
  • Generate a synchronized show in Master/Slave mode with up to 2 units
  • Separate colour and gobo wheels allow for creative programming
  • Includes 10 popular holiday gobos
Share:

Blazor Rotating Mirror Barrel Multi-Effects LED 115W

Get rolling with a bright LED barrel scanner that fills the dancefloor with nearly 180 degrees of coverage. At 115 watts, this punchy effect light projects dazzling gobo imagery, even without the use of smoke or haze. Broad sweeping mirror effects and interchangeable rotating gobos combine to dazzle any dancefloor with Blazor.

Product Features

  • Barrel LED effect light fitted with a 115W LED projects multicoloured rotating gobos
  • Increase design flexibility and effects with inter-changeable gobos
  • Provide wide coverage using the rotating mirror barrel plus mirror dish
  • Generate a synchronized show in Master/Slave mode with up to 2 units
  • Separate colour and gobo wheels allow for creative programming
  • Includes 10 popular holiday gobos
  • Compatible with IRC-6 for flexible control over all features
  • Save time running cables and extension cords by power linking multiple units
  • Fits best in the CHS-40 VIP Gear Bag

Product Specifications

  • DMX Channels:  4 or 11
  • DMX Connectors:  3-pin XLR
  • Pan and Tilt:  163° / 360° (continuous)
  • Colores:  6 + Open, split colours, continuous scroll at variable speeds
  • Gobos:  7 (metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Light Source:  1 LED 115 W, (4 A), 50,000 hours life expectancy
  • Strobe Rate:  0 to 20 Hz
  • Coverage Angle:  176°
  • Power Linking:  3 units @ 120 V; 5 units @ 230 V
  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current:
    • 166 W, 2.4 A @ 120 V, 60 Hz
    • 160 W, 1.5 A @ 230 V, 50 Hz
  • Gobo Size:  18.55 mm outside, 10mm image, 0.27 mm max thickness
  • Weight:  9 lb. (4.08 kg)
  • Size:  13.38 x 9.05 x 12.2 in (340 x 230 x 310 mm)
  • Approvals:  CE, RoHS
  • Cable Length:  5 ft (5.25 m)
  • Optional Controllers:  IRC-6

What's in the Box?

  • BlazorPower cord
  • Hanging bracket
  • Holiday gobo pack
  • Quick Reference Guide

Product Downloads

Product Video
