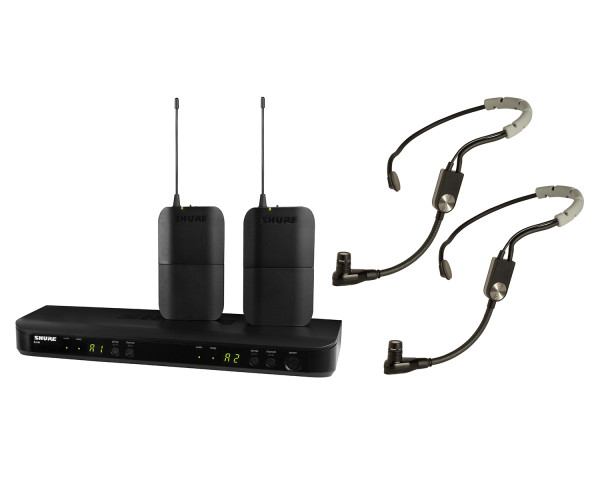

BLX188/SM35 Dual Wireless Headset System BLX88/2xSM35 K3E

Product Features

BLX88 Dual Receiver Features

• Up to 12 compatible systems (region dependent)
• Microprocessor-controlled internal antenna diversity
• One touch QuickScan locates the best open Frequency
• ¼" and XLR audio outputs
• Two colour audio status indicator LED
• Green: Normal audio levels
• Red: Excessive audio levels (overload/clipping)
• Not rack mountable

BLX1 Bodypack Features

• For use as part of BLX and BLX-R Analogue Wireless Systems
• Power and battery status LED
• Adjustable gain control
• Quick and easy frequency matching
• AA batteries provide up to 14 hours of continuous use
• 100 m (300 ft.) operating range (line of sight)

SM35 Headset Features

• Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
• Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
• Flexible gooseneck design allows for optimized placement that further improves source isolation
• Lightweight and low-profile form enables comfortable, long-wearing use
• TA4F (TQG) connector is compatible with any Shure wireless bodypack
• Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
• Tailored frequency response refined for clear, crisp vocal reproduction

Product Specifications

System Specifications

• Working Range:  91 m (300 ft) Line of Sight Note: Actual range depends on RF signal absorption, reflection and interference.
• Audio Frequency Response:  50 to 15,000 Hz Note: Dependent on microphone type
• Total Harmonic Distortion:  Ref. ±33 kHz deviation with 1 kHz tone 0.5%, typical
• Dynamic Range:  100 dB, A-weighted, typical
• Operating Temperature:  -18°C (0°F) to 57°C (135°F)
• Polarity:  Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output.

BLX88 Specifications

• Output Impedance
  • XLR connector:  200 Ω
  • 6.35 mm (1/4") connector:  50 Ω
• Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone:
  • XLR connector:  –27 dBV (into 100 kΩ load)
  • 6.35 mm (1/4") connector:  –13 dBV (into 100 kΩ load)
• RF Sensitivity:  -105 dBm for 12 dB SINAD, typical
• Image Rejection:  >50  dB, typical
• Dimensions:  1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D
• Weight:  15.1 oz. (429  g)
• Housing:  Molded ABS
• Power Requirements:  12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive)

BLX1 Bodypack Specifications

• Audio Input Level
  • max:  -16 dBV maximum
  • min (0 dB):  +10 dBV maximum
• Gain Adjustment Range:  26 dB
• Input Impedance:  1 MΩ
• RF Transmitter Output:  10 mW, typical (varies by region)
• Dimensions:  4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D
• Weight:  2.6  oz. (75 g), without batteries
• Housing:  Molded ABS
• Power Requirements:  2 LR6 AA batteries, 1.5 V, alkaline
• Battery Life:  up to 14  hours (alkaline)

SM35 Headset Specifications

• Type:  Electret Condenser
• Frequency Response:  40 Hz to 20,000 Hz
• Polar Pattern:  Unidirectional (Cardioid)
• Output Impedance @ 1 kHz:  2400 Ω
• Audio Output Level:  -59.0 dBV/Pa
• Signal-To-Noise Ratio @ 1 kHz:  55 dB
• Maximum SPL 1000 Ω load, @ 1% THD:  153.0 dB
• Dynamic Range @ 1 kHz, 1000 Ω load:  114.0 dB
• Equivalent Output Noise Typical, A-Weighted:  39 dB
• Power Requirements:  +5 V DC (nominal), 10 V maximum (DC bias)
• Polarity:  Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
• Cable:  1.1 m (45 in.)
• Connector:  TA4F
• Net Weight:  72 g (2.53 oz.)

What's in the Box?

• 1 x BLX4 Wireless Receiver
• 1 x BLX1 Wireless Bodypack Transmitter
• 2 x SM35 Headset Microphones
• 1 x PS24 Power Supply
• 2 x Clothing clips
• 2 x Windscreens
