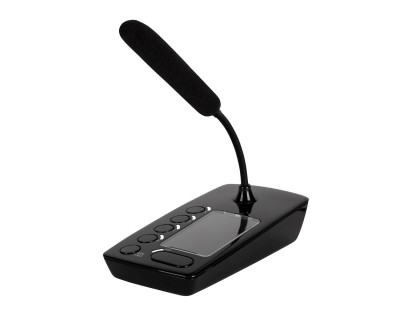

BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck

« return to previous page
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Main Image
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Image 1
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Image 2
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Image 3
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Image 4
RCF BM 3001 1-Zone Desktop Paging Microphone 300mm Gooseneck - Image 5
Price:
RRP: £183.60 inc VAT
Code:
RCFBM3001
Manufacturer Code:
14322008
Brand:
RCF

Quantity required:

Main Features

  • Plastic body with 300 mm gooseneck
  • PTT button with LED
  • Power supplied by 'Phantom' (18 ÷ 48 V dc)
  • Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
  • Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
  • Polyurethane foam wind screen
Share:

BM3001 Desktop Paging Mic for ES3160 with 5m cable (E)

The BM 3001 Desktop Paging microphone allows to send announces toward a single zone and it is the ideal complement for the ES 3160 and ES 3323 receiver amplifier. It can also be used with other mixer-preamplifiers equipped Phantom Power (18 V - 48 V).

Product Features

  • Plastic body with 300 mm gooseneck
  • PTT button with LED
  • Power supplied by 'Phantom' (18 ÷ 48 V dc)
  • Ready for direct connection to amplifiers ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080, UP 2161, UP 2321, UP 2081.
  • Chime activation on ES 3080, ES 3160-II, ES 3323-II, AM 2160, AM 2320, AM 2080
  • Polyurethane foam wind screen
  • 5 m connecting cable (with RJ 45 plugs) included

Product Specifications

Microphone specifications

  • Type:  Desktop paging microphone with electret capsule
  • Directivity:  Cardioid
  • Frequency Response (-3dB):  50 Hz ÷ 18 kHz
  • Minimum load impedance (ohm):  470.00 ohm
  • Nominal output voltage @3.3 kohm (mVRMS):  100.00 mV RMS
  • Phantom power:  Yes
  • Phantom Power:  18 V DC - 48 V DC

Console specifications

  • Console Type:  Paging
  • General call:  Yes
  • Number of zones:  1
  • LED indicators:  Yes

Power requirement

  • Power consumption:  2.80 mA

Connections

  • Connectors:  RJ45

Functionalities

  • Smart PTT:  Yes

Accessories

  • Cable included:  Yes
  • Cable length (m):  5

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Plastic
  • Colour:  Grey

Physical & Dimensions

  • Height:  48 mm / 1.89 inches
  • Width:  100 mm / 3.94 inches
  • Depth:  159 mm / 6.26 inches
  • Weight:  0.73 kg / 1.61 lbs
