C MAX 4110 10" 2-Way High-Powered Loudspeaker 350W Black

« return to previous page

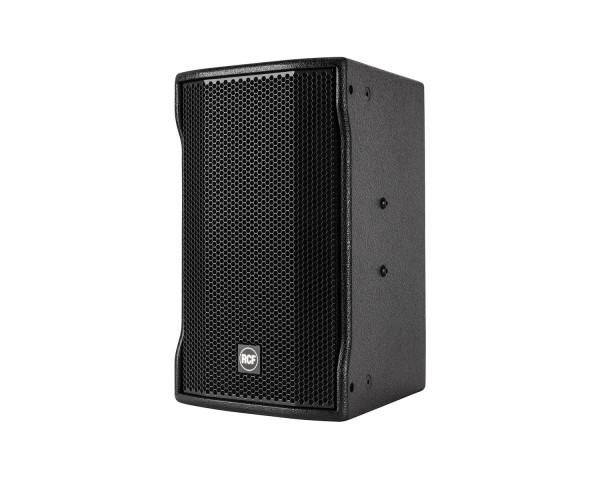

RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Main Image
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 1
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 2
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 3
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 4
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 5
RCF C MAX 4110 10 2-Way High-Powered Loudspeaker 350W Black - Image 6
Price:
RRP: £1,149.60 inc VAT
Code:
RCFCMAX4110
Manufacturer Code:
13000534
Brand:
RCF

Quantity required:

Main Features

  • 128 dB Max SPL
  • 700 WATT program power handling
  • 65 – 20000 Hz Frequency Range
  • Heavy-duty birch plywood coated with black textured epoxy
  • Hi Resolution Custom RCF Precision Transducer
  • Perfectly Tuned Crossover
Share:

C MAX 4110 Full Range 2-Way 10"+1" Heavy Duty Speaker

The full-range passive two-way speaker RCF C MAX 4110 has been specifically designed as club systems for entertainment, to reach the best near field quality, vocal coherence, and a stable sound pressure level even at high volumes. It features a 10” woofer and a 1” compression driver. The passive C MAX Series speakers represent a further step of the famous COMPACT Series. Thanks to the bass reflex port, perfectly tuned on the back of the cabinet, the system gives its best when installed near walls, without the need of a subwoofer. It’s perfect for KTV, Karaoke rooms, conference halls, AV installations, public areas and clubs.

Product Features

  • 128 dB Max SPL
  • 700 WATT program power handling
  • 65 – 20000 Hz Frequency Range
  • Heavy-duty birch plywood coated with black textured epoxy
  • Hi Resolution Custom RCF Precision Transducer
  • Perfectly Tuned Crossover

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  65 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  128 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  70°
  • Directivity index Q:  11
  • System Sensitivity:  97 dB

Power section

  • Nominal Impedance:  8 ohm
  • Power Handling:  350 W
  • Peak Power Handling:  1400 W PEAK
  • Recommended Amplifier:  700 W
  • Protections:  BULB LAMP
  • Crossover Frequencies:  1800 Hz

Transducers

  • Compression Driver:  1 x 1.0'' neo, 1.75'' v.c
  • Woofer:  10'', 2.5'' v.c
  • Input/Output section Input connectors:  Speakon® NL4
  • Output connectors:  Speakon® NL4

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  Baltic birch plywood
  • Hardware:  16 x M10
  • Handles:  1 Top
  • Grille:  Steel
  • Colour:  Black

Physical & Dimensions

  • Height:  500 mm / 19.69 inches
  • Width:  309 mm / 12.17 inches
  • Depth:  350 mm / 13.78 inches
  • Weight:  17.6 kg / 38.8 lbs
