C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U

« return to previous page

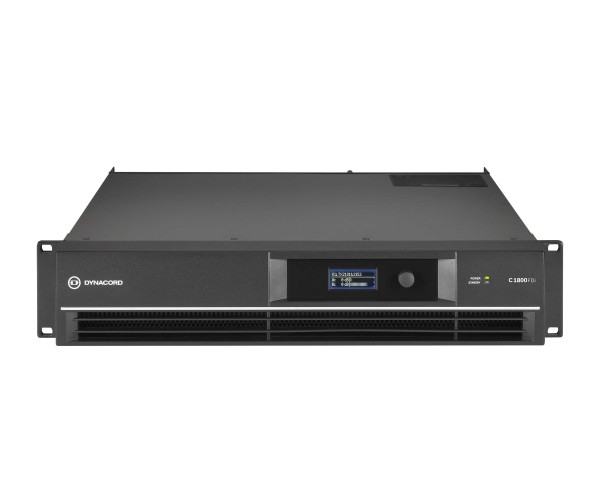

Dynacord C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U - Main Image

Dynacord C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U - Image 1

Dynacord C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U - Image 2

Dynacord C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U - Image 3

Dynacord C1800FDI Install Series DSP Power Amp 2x850W @ 4Ω 2U - Image 4

Price:: RRP: £1,310.28 inc VAT
Code:: DYNC1800FDI
Manufacturer Code:: F.01U.322.277
Brand:: Dynacord

Main Features

C1800FDI DSP Power Amplifier
Installation DSP amplifier, Euroblock connectors
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
Low Z and 70/100V operation and power saving standby mode
Intuitive system control software, makes setup and control easy

Full Description

C1800FDI Install Series DSP Power Amp 2x850W 2U

Dynacord’s C Series power amplifiers are designed for permanent installation applications, to provide background or live music in venue including bars, churches, restaurants, sports facilities, and performing arts centers.

C Series power amplifiers also feature an exciting new industrial design. Equipped with an extremely robust power supply and a powerful, linear amp design, flawless operation is guaranteed – even in the most demanding environments. A sophisticated protection circuitry ensures safe, reliable operation under all conditions.

Features

Product Features

C1800FDI DSP Power Amplifier
Installation DSP amplifier, Euroblock connectors
Fully integrated professional speaker processing with FIR Drive technology
Market leading acoustic performance and rock solid reliability
Low Z and 70/100V operation and power saving standby mode
Intuitive system control software, makes setup and control easy

Technical Specs

Product Specifications

General

Maximum Output Power, SIngle Channel: 2Ω=1600W; 2.6Ω= 1300W; 4Ω= 950W 8Ω= 480W
Maximum Output Power, Dual Channel: Load Impedance= 2Ω=1400W; 2.6Ω=1200W; 4Ω=850W; 8Ω=450W; High Impedance= 70V Operation=2x 1250W;
Maximum Output Power, Bridged: Load Impedance= 4Ω=2800W; 8Ω=1700W; High Impedance= 70V Operation=1x 600W; 100V Operation=1x 1250W
Maximum RMS Voltage Swing, THD = 1%, 1kHz: 65.1V
Voltage Gain ref.1kHz: 32.0dB
IMD-SMPTE, 60 Hz, 7 kHz: <0.1%
DIM 30: <0.05%
Maximum Input Level: +21dBu
Crosstalk: < -80dB
Frequency Response: 10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced: 20kΩ
Signal-to-Noise Ratio (A-weighted): >105dB
Output Noise , A-weighted: <-68dBu
Output Stage Topology: Class AB
Power Requirement: 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption: 700W
Protection: Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling: Front-to-rear, 3-stage-fans
Safety Class: I
Available Colour: Black
Signal Processing: FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
Direct Drive Load Capability: 70 V: 2 x 1250 W (-1.5 dB)* 100 V: 1 x 1250 W (-1.5 dB)*
High Impedance Operation: 70 V (dual channel), 100 V (bridged)
Operating Temperature Range: +5°C to +40°C (40°F to +105°F)
Remote Power ON/GPIO: Power remote via switch, delay time selectable Floating relay contacts (show protect mode) Inputs for preset selection
Total Harmonic Distortion: <0.05%
