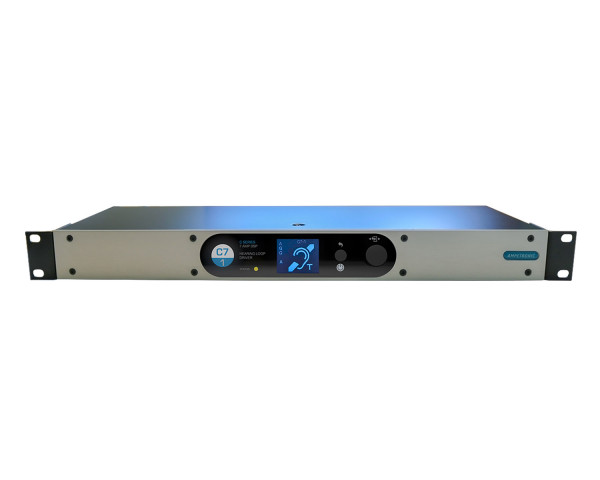

C7-1D DANTE Perimeter Induction Loop Driver 1x7A rms 230V

Product Features

• Simple digital interface for accurate adjustment
• Network and stand-alone options
• Built-in test tones
• Compatible with Loopworks Measure LoopLink for direct and automated driver control
• Clear indicators and system diagnostics
• Compact 1U rack mount unit with internal power supply
• Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction
• Industry standard Phoenix connectors
• Data compliant with IEC 62489-1 Standard
• 100V line input

Applications

• Lecture Theatres
• Conference facilities
• Stadia
• Sports Halls
• Cinemas
• Theatres
• Courtrooms
• Airports
• Railway Stations

Product Specifications

GENERAL

• Current
  • 7ARMS (9.9 Apk) 1kHz sine
  • 3.3ARMS pink
• Voltage:  20VRMS (28.3Vpk)
• Power Consumption 230V / 120V nominal 45-65Hz:  55W

INPUTS

• Input 1 and 2:  3 way 3.5mm euroblock screw terminal input (supplied) with a balanced microphone and line level operation, selectable via rear panel switch. Switchable 250Hz low cut filter. Priority input option (network models only).
• Microphone / Line
  • Microphone specification; 200 - 600Ω, sensitivity -67dBu. Selectable 24V phantom power on microphone only
  • Line sensitivity -42dBu.
  • Max line level 17Bu. Max mic level -8dBu.
• 100V Line (Input 2 only)
  • 2 way 5mm euroblock screw terminal (supplied).
  • Sensitivity +7dBu
• Dante (Optional - Input 3)
  • RJ45 Ethernet input (100MB/s), AES67 compliant.
  • 2x channels mono summed.
• Network (Optional C5/C7)
  • RJ45 Ethernet, control and monitoring.
  • Hosted web server, Telnet & SNMP.

OUTPUTS

• Loop Connectors:  4 way 5mm euroblock screw terminal (supplied) for each output, for twisted pair or star-quad configured feed cables
• DC Output
  • 2 way 3.5mm euroblock screw terminal (supplied).
  • Re-settable, fuse protected 12V 0.1A.
  • Controllable to reflect amplifier status (network models only)
• Status Relay (C10 and C14)
  • 2 way 3.5mm euroblock screw terminal (supplied).
  • Normally closed isolated relay contacts, open in fault conditions. Rated load 0.5A at 125VAC, 2A at 30VDC.
• Line Output:  3 way 3.5mm euroblock screw terminal (supplied) post AGC balanced output
• USB:  Firmware updates or power for wireless router (200mA max)

AUDIO SYSTEM

• Frequency Response:  80Hz to 6.5kHz
• Distortion:  THD+N <0.3% 1kHz sine at full current
• Automatic Gain Control:  The AGC is optimised for speech. Dynamic range >36dB
• Metal Loss Correction
  • Corrects system frequency response issues due to metal structures in a building. Gain constant at 1kHz, adjustable gain slope from 0 to 4dB per octave in 0.25dB increments.
  • Custom dual slope MLC allows different slopes and knee frequency to be set via the menu (network models only). This does not compensate for signal loss from metal structures which can be significant.
• Phase Shift:  User selectable (network models only) at 0° or 90° between outputs

ADDITIONAL FUNCTIONS

• Status
  • Tri-colour LED:
    • Solid Green = normal operation
    • Flashing Green = sleep mode
    • Flashing Amber = standby
    • Flashing Red = error
    • Fast Flashing Amber = firmware update

PHYSICAL

• Size
  • Full width 1U 19" rack mount.
  • Width 430mm Depth 190mm Height 44mm
  • Depth inc. knob 190mm (C5/C7) 305mm (C10/C14)
• Weight: 2.8kg
• Mounting Options
  • Freestanding
  • 1U 19" rack mount (brackets fitted as standard)
  • Wall mounted, brackets available separately
• Environment:  IP20 rated; 20 to 90% relative humidity; 0 to 35ºC
• Cooling
  • C5/C7 Passive
  • C10/14 variable speed fan, front inlet rear exhaust

What’s in the Box?

• 1 x C7-1D Driver
• 1 x Loop connectors
• 1 x DC connector
• 2 x Input connectors
• 1 x 100V line connector
• 1 x Line out connector
• 2 x 2mm steel 1U rack mount brackets
• 1 x C Series quick start guide
• 1 x Power cable (region specific)
• 1 x Induction Loop Sign
• 4 x self adhesive feet
