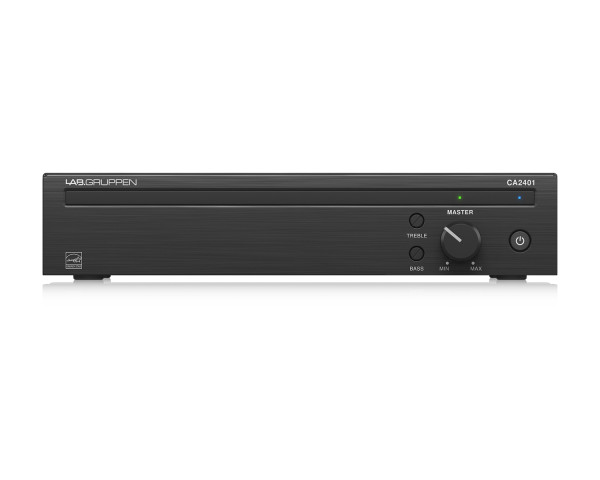

CA2401 Commercial Amplifier with Direct Drive 1x240W 100V

Product Features

• 240 Watt amplifier for commercial and industrial applications
• Low-Z (4/8 Ohm) and High-Z (70/100 V) operation with switchable high-pass filter
• Energy Star* certified design conserves energy and drastically reduces operational cost
• Direct drive, constant power technology for superior audio performance and reliability
• GPI remote volume control using standard RJ-45 connector and Ethernet cable
• Individual front panel master volume and bass/treble controls
• Auto Ramp circuitry for quiet and fast power up/down enables real-world energy savings
• Front panel power control button for direct access
• Rack-mountable 1U, half-rack width enclosure with joining brackets for rack, table and wall mounting
• Euroblock type amplifier input and output connectors
• Convection-cooled, fan-less amplifier technology for low noise
• 10-Year Warranty Program*
• Designed and engineered in Sweden

Product Specifications

Maximum Output Power

• 4 Ω per channel:  240 W
• 8 Ω per channel:  240 W
• 70 V per channel:  240 W
• 100 V per channel:  240 W

Number of Output Channels

• Number:  1

Minimum Load Impedance

• 4 Ω mode:  4 Ω
• 8 Ω mode:  8 Ω
• 70 V output mode:  20 Ω
• 100 V output mode:  41 Ω

Controls

• Front:  Power standby button, gain control, tone controls - bass and treble
• Rear:  Load config - (4 Ω / 8 Ω / 70 V / 100 V), switchable 80 Hz high-pass filter

Tone Controls

• Bass:  ±10 dB @ 100 Hz
• Treble:  ±10 dB @ 10 kHz

Indicators

• Power:  On (blue), force standby (red), sleep (yellow)
• Master
  • Signal (green LED):  >12.3 mV (-36 dBu)
  • Limit (red LED):  Input clip, output limit
  • Fault (red LED):  Overheat, DC fault, over current, etc

System

• Inputs:
  • 1 x 3-pin 5.08 mm Euroblock connector
  • 1 x RCA stereo summed
• Input impedance:  10 kΩ unbalanced and RCA, 20 kΩ balanced
• Input sensitive:  Balanced: 1.23 V (+4 dBu)
• RCA: 0.62 V (-2 dBu) each for mono sum RCA
• Maximum input level:  9.75 V (+22 dBu)
• Outputs:  1 x 2-pin 5.08 mm Euroblock connector
• Output circuit type:  Class D
• Remote connector:  1 x RJ45 connector

Performance

• Distortion, 1/8 rated power:  <0.05%
• Frequency response:  20 Hz to 20 kHz, +0.5 / -1 dB
• Crosstalk (2 channel models):  >85 dB
• Signal-to-noise:  >97 dBA
• High-pass filter:  80 Hz HPF

Circuit Protection

• Cooling:  Convection-cooled, fanless
• Amplifier protection:  Thermal protection, over current protection, DC protection, high frequency protection
• Load protection:  Controlled start and shutdown behaviour, DC-fault protection

Power Supply, Voltage (Fuse)

• Main voltage:  100-240 V~, 50/60 Hz with active power factor correction
• Fuse:  T 6.3 A L 250 V
• Power consumption 1/8th rated power @ 4 Ω:  70 W
• Mains connector:  Standard IEC connector

Physical and Dimensions

• Dimensions (H x W x D):  44 x 218 x 299 mm (1.7 x 8.6 x 11.8")
• Weight:  2.4 kg (5.3 lbs)
• Finish:  Brushed black anodized aluminium chassis with black painted steel bottom
• Approvals:  CE, cTUVus, PSE, CCC, RoHS, FCC part 15 Class B and Energy Star 3.0
