Main Features
Purpose-built for long aisles and concourses
Asymmetric vertical waveguide with up to 6:1 throw ratio for extended coverage
Efficient design with 70V/100V transformers for cost-effective sound reinforcement
Unique coverage patterns provide extended distance without significant cost escalation

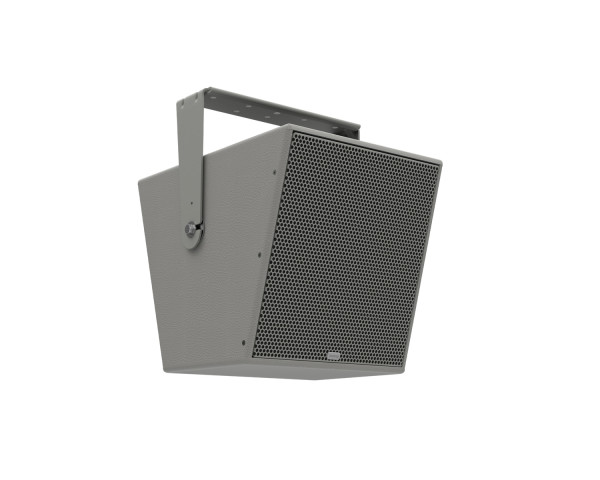

The Commercial CCA-80 constant coverage aisle loudspeaker is an asymmetric, full-range, 3-way horn device ideal for paging and background music. It produces a long, rectangular coverage pattern that delivers exceptional speech intelligibility in the challenging acoustic environment of long aisles or concourses.
The CCA-80 constant coverage aisle loudspeaker is an asymmetric, full-range, three-way, triaxial loudspeaker engineered for optimal performance in long, high-ceilinged narrow spaces such as aisles and corridors.
The asymmetric waveguide design offers precise, uniform coverage with a throw ratio of 6:1. The narrow upper portion of the horn provides extended coverage for distant areas, while the progressively wider, but attenuated, lower portion of the horn ensures full coverage directly beneath the mounting position. The horn is titled downward within the enclosure, a unique design that minimizes aiming precision requirements and guarantees coverage directly beneath the speaker, outperforming traditional horns.
The CCA-80 produces an unrivaled consistent SPL level within its coverage pattern, unlike typical speakers where SPL falls off with distance, making it ideal for background music and voice paging in large spaces. It is optimized to work in the most challenging applications, like warehousing, with mounting heights up to 36 feet.
This speaker delivers full-range 115 Hz to 14 kHz audio, ensuring superior music reproduction and voice clarity. The triaxial design maximizes coherency, resulting in a loudspeaker suitable for both clear voice paging and full range music playback.
This system offers a significant cost advantage, reducing total system costs by over 50% compared to existing premium solutions. No other product on the market offers this level of innovation and efficiency in asymmetric paging speakers.
Product Features
Purpose-built for long aisles and concourses in warehouses, sports complexes, shopping malls, hotels, themed entertainment venues, and more
Asymmetric vertical waveguide with up to 6:1 throw ratio for extended coverage
Efficient design with 70V/100V transformers for cost-effective sound reinforcement
Unique coverage patterns provide extended distance without significant cost escalation
5-year warranty
Product Specifications
Operating Mode: Passive, selectable low-impedance or 70 V / 100 V operation
Operating Environment: Indoor
Operating Range (-10 dB): 110 Hz to 13 kHz
Constant Coverage Pattern: The horizontal coverage varies as a function of the vertical angle to provide consistent SPL
