CDD5B 5" 2-Way Passive Loudspeaker with Brackets 100W Black

« return to previous page

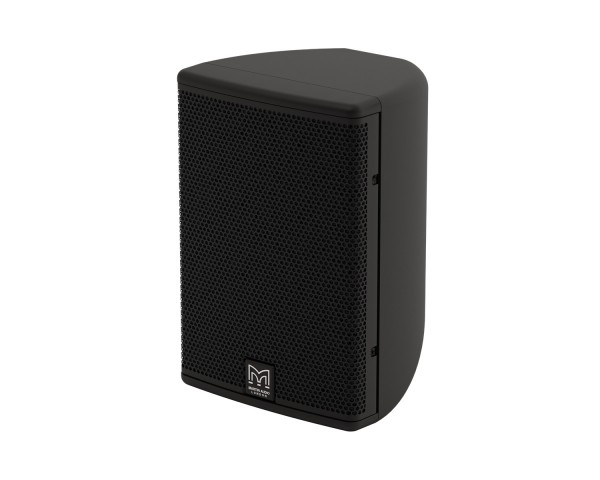

Martin Audio CDD5B 5 2-Way Passive Loudspeaker with Brackets 100W Black  - Main Image
Martin Audio CDD5B 5 2-Way Passive Loudspeaker with Brackets 100W Black  - Image 1
Martin Audio CDD5B 5 2-Way Passive Loudspeaker with Brackets 100W Black  - Image 2
Price:
RRP: £252.00 inc VAT
Code:
MAUCDD5B
Manufacturer Code:
CDD5B
Brand:
Martin Audio

Quantity required:

Main Features

  • Two-way passive micro speaker
  • Designed for discreet positioning in architectural installations
  • Including bars, museums, foyers, concourses, exhibition centres & HoW
  • Can be used in either horizontal or vertical orientation
  • Can be surface-mounted close to a wall or ceiling
  • Finished in Black
Share:

CDD5 - Black

The CDD5 is a two-way passive micro speaker designed for discreet positioning in architectural installations — including bars, museums, foyers, concourses, exhibition centres and HoW. It features a unique, patent-pending 5” (125mm) LF/0.7” (19mm) HF Coaxial Differential Dispersion driver in a rigid ABS moulded enclosure and is supplied with a dedicated omni-directional mounting bracket.

The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response in the crossover region associated with non-coaxial designs.

The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of the supplied omni-directional bracket or an optional close-mount ceiling bracket.

A full-range, passive two-way system, the CDD5 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

Finished in black (RAL9005) or white (RAL9016) as standard, the CDD5 can be supplied in any RAL colour to order. The CDD5TX option incorporates a 70V/100V line transformer.

Product Features

  • Ultra-compact, CDD™ passive two-way system
  • Coaxial Differential Dispersion™ technology
  • Elegant ABS moulded enclosure
  • User-rotatable coaxial drive unit
  • Vertical and horizontal mounting options
  • Screw-free perforated steel grille
  • 8Ω nominal impedance
  • Discreet mounting accessories
  • Black or white standard colour options
  • 70V/100V line transformer option

Product Specifications

  • TYPE: Ultra-compact, Coaxial Differential Dispersion passive two-way system
  • FREQUENCY RESPONSE : 100Hz-20kHz ± 3dB, 10dB @ 70Hz
  • DRIVER LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system
  • HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
  • RATED POWER: 100W AES, 400W peak
  • RECOMMENDED AMPLIFIER: MA2.8Q, MA2.0
  • SENSITIVITY: 90dB
  • MAXIMUM SPL: 110dB continuous, 116dB peak
  • NOMINAL IMPEDANCE: 8 ohms
  • DISPERSION (-6dB): 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)
  • CROSSOVER: 2.5kHz passive
  • ENCLOSURE: 3 litre, ABS
  • FINISH: Black or white
  • PROTECTIVE GRILLE: Black or white perforated steel with scrim cloth backing
  • CONNECTORS: Low profile 13A push-lock
  • PIN CONNECTIONS: Left to right: Input+, Input -, Link -, Link +
  • FITTINGS: 6 x M5 inserts for wall/ceiling brackets
  • DIMENSIONS: (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
  • WEIGHT: 2.7kg (6lbs)
  • ACCESSORIES: CDDCB5B ceiling bracket black, CDDCB5W ceiling bracket white
