Ci130QRfl 5.25

« return to previous page

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 1

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 2

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 3

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 4

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 5

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 6

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 7

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 8

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 9

KEF Ci130QRfl 5.25 2-Way Flush-Mount Uni-Q Ceiling Speaker - Image 10

Price:: RRP: £400.00 inc VAT
Code:: KEFCI130QRFL
Manufacturer Code:: 637203217630
Brand:: KEF

Main Features

In-ceiling or in-wall applications
Flush mount and frameless design
Features KEF's signature Uni-Q array
High-quality sound
Simple installation
Ideal for applications with clean lines and minimalist features

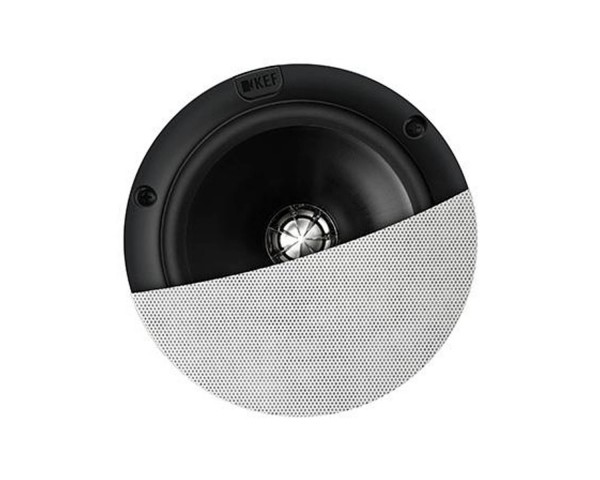

Ci130QRfl 5.25" Frameless Ceiling Speaker

KEF’s Ci130QRfl is a flush-mounted, frameless architectural speaker engineered for high-quality sound and simple installation. Designed for both new builds and retrofitting, Ci130QRfl sits flush with the wall or ceiling, making it ideal for properties with clean lines and minimalist features.

Part of the Ci Q Series, Ci130QRfl is built around KEF’s signature Uni-Q array so it acts as a single point source, which combined with Tangerine Waveguide technology, disperses pristine sound throughout a room. The Ci130QRfl is a round loudspeaker, while the Ci130QSfl features identical drivers in a square format.

Intuitive Installation

Ci130QRfl is engineered to be easy to install. Designed for both new construction and retrofitting, Ci130QRfl can be installed as part of the plastering process, and thanks to its frameless design it sits completely flush with the wall or ceiling for an incredibly clean finish.

Product Features

In-ceiling or in-wall applications
Flush mount and frameless design
Features KEF's signature Uni-Q array
High-quality sound
Simple installation
Ideal for applications with clean lines and minimalist features

Product Specifications

Nominal Impedance: 8 Ohms
Sensitivity: 87dB (2.83V/ 1m)
Frequency Response (±6DB) Open-Backed: 45Hz - 34kHz
Frequency Range (-10DB): 38Hz-30kHz
Nominal Coverage (Degrees): 130
MAX SPL (DB): 103
Crossover Frequency: 3.8kHz
Drive Units:
- LF: 130mm (5.25in.) Uni-Q
- HF: 19mm (0.75in.)
Recommended Amplifier Power: 10-100W
Recommended High-Pass Filter (HZ): 50Hz
Product External Dimensions:
- Diameter Ø: 200.6mm (7.9in)
- Depth: 104.6mm (4.12in)
Cut-Out Dimensions: Diameter Ø: 158mm (6.22in.)
Mounting Thickness:
- Ceiling Thickness (Maximum): 31mm (1.220in.)
- Ceiling Thickness (Minimum): 7mm (0.276in.)
Net Weight: 1.45kg (3.19Ibs.)
Mounting Depth From Surface: 101mm (3.98in.)
Optional Rough In Frame: NA
Optional Rear Enclosure: NA
Ideal Rear Volume (L): 15
Minimum Rear Volume (L): 10
Safety And Regulatory Compliance: NA
