Ci160.2CL 6.5" 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64

« return to previous page

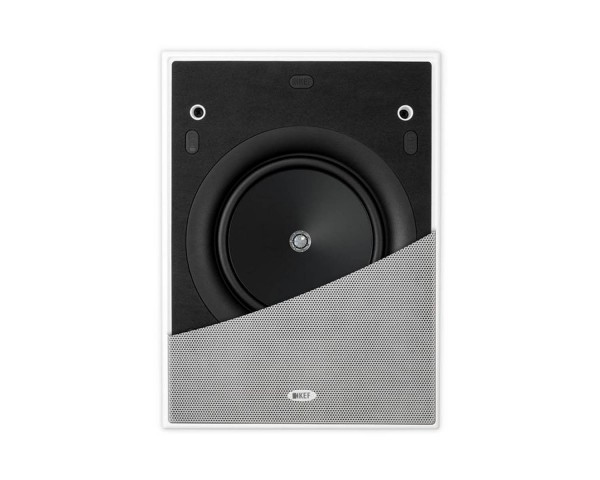

KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Main Image
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 1
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 2
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 3
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 4
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 5
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 6
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 7
KEF Ci160.2CL 6.5 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 8
Price:
RRP: £190.00 inc VAT
Code:
KEFCI1602CL
Manufacturer Code:
637203215407
Brand:
KEF

Quantity required:

Main Features

  • UTB™ Ultra-Thin Bezel
  • 160mm (6.5in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • IP64 certified
Share:

Ci160.2CL 6.5" 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64

The KEF Ci160.2CL is a high performance shallow mount speaker designed for flush mount in-ceiling installations. It’s a coincident point source design featuring KEF’s proprietary Uni-Q® technology with a driver array that includes a 16mm high frequency aluminium dome tweeter mounted in the acoustic centre of the 160mm low frequency woofer. The tweeter features KEF’s Tangerine Waveguide engineered to enhance high frequency dispersion and when combined with the Uni-Q array, creates a speaker that delivers exceptionally smooth and consistent sound across a wide listening area.

The KEF Ci160.2CL is constructed using weather resistant components and the Ultra-Thin Bezel and grille are treated with a UV protective coating making this speaker ideal for background, foreground, and anouncement applications in indoor and outdoor venues such as hotel rooms, corridors and school hallways.

Product Features

  • UTB™ Ultra-Thin Bezel
  • 160mm (6.5in.) Uni-Q driver
  • 16mm (0.6in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant
  • IP64 certified

Product Specifications

  • Model:  Ci160.2CL
  • Series:  C Series
  • Nominal impedance:  8Ω
  • Sensitivity (2.83V/1m):  89dB
  • Frequency response (±6dB) open-backed:  52Hz - 20kHz
  • Nominal coverage:  120°
  • Max SPL:  104dB
  • Crossover frequency:  2.5kHz
  • Drive units
    • LF: 160mm (6.5in.) Uni-Q
    • HF: 16mm (0.6in.)
  • Recommended amplifier power:  10-100W
  • Recommended high-pass filter:  50Hz
  • Product external dimensions (H x W x D):  303 x 223 x 91 mm (11.93 x 8.78 x 3.58in.)
  • Cut-out dimensions Diameter (H x W):  270 x 190 mm (10.63 x 7.48in.)
  • Mounting depth from surface:  84.5mm (3.33in.)
  • Net Weight:  1.6kg (3.5lbs.)
  • Optional rough in frame:  RIF160L
  • Optional rear enclosure:  RNC160L
  • Ideal rear volume:  35L
  • Minimum rear volume:  20L
