CI160TS 4.5" 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht

« return to previous page

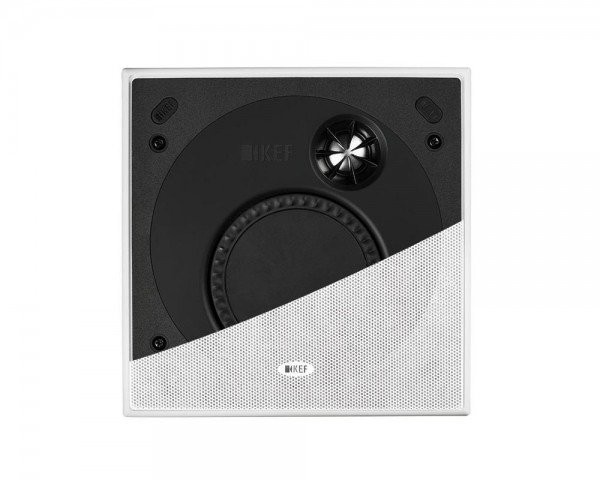

KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Main Image
KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Image 1
KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Image 2
KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Image 3
KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Image 4
KEF CI160TS 4.5 2-Way Uni-Q Flush Square Ceiling Speaker IP64 Wht - Image 5
Price:
RRP: £279.60 inc VAT
Code:
KEFCI160TS
Manufacturer Code:
637203212420
Brand:
KEF

Quantity required:

Main Features

  • <36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension
  • Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response
  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg
Share:

Ci160TS 4.5" Low-Depth Installation Speaker

Boasting the latest incarnation of our formidable 4.5in. mid/bass T Series driver and powerful 1in. tweeter, the ultra-slim new T Series Ci speakers open up new possibilities for enjoying KEF's uncompromised sound quality where installation space is at a premium.

Requiring less than 36mm of mounting depth, the Ci160TS fits snugly in very narrow ceilings or wall spaces and is therefore specified for demanding applications such as today's luxury high-rise apartments or your music system.

Product Features

  • <36mm mounting depth allows fitment to very restricted cavities
  • Ultra-low profile LF unit with excellent bass extension
  • Vented tweeter with KEF's unique 'tangerine' waveguide for natural HF response and wide, even dispersion
  • Rigid flat diaphragm assures clean upper bass and mid-range response
  • Paintable Ultra-Thin Bezel (UTB) and magnetic grille to blend unobtrusively with décor
  • Fast, versatile installation on virtually any surface via dogleg

Product Specifications

  • Nominal Impedance:  8 Ohm
  • Sensitivity:  87dB (2.83V/ 1m)
  • Crossover Frequencies:  1.7kHz
  • Frequency Response:  110Hz - 24Hz (+/-6dB) open-backed
  • Drive Units:
    • LF: 115mm (4.5in. Dual layer)
    • HF: 25mm (1in.)
  • Recommended Amplifier Power:  10-100W
  • Product External Dimension (H x W x D):
    • Diameter : 222.8x222.8 mm (8.77 x 8.77 in.)
    • Depth : 41mm (1.61in.)
  • Cut-Out Dimensions (H x W) :  194 x 194 mm (7.64 x 7.64 in.)
  • Mounting Thickness:
    • Ceiling Thickness (Maximum): 26mm (1.03 in.)
    • Ceiling Thickness (Minimum): 9mm (0.36 in.)
  • Mounting Depth From Surface:  <36mm (1 7/16in.)
  • Optional Rough In Frame:  RIF160S
  • Optional Rear Enclosure:  RNC160S
  • Net Weight:  1.05kg (2.31lbs)
  • Unit Measurement:  Piece
