Ci200QL 8" 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64

« return to previous page

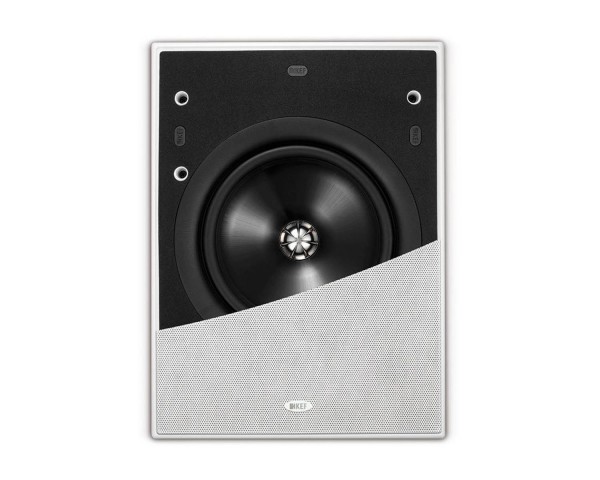

KEF Ci200QL 8 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Main Image
KEF Ci200QL 8 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 1
KEF Ci200QL 8 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 2
KEF Ci200QL 8 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 3
KEF Ci200QL 8 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64 - Image 4
Price:
RRP: £340.00 inc VAT
Code:
KEFCI200QL
Manufacturer Code:
637203208621
Brand:
KEF

Quantity required:

Main Features

  • UTB™ Ultra-Thin Bezel
  • 200mm (8in.) Uni-Q Driver
  • 25mm (1in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • IP64 certified
Share:

Ci200QL 8" 2-Way Uni-Q Flush Rectangle Ceiling Speaker IP64

The KEF Ci200QL is a premium high performance speaker designed for in-ceiling and flush mount installations where a rectangular shaped assembly is preferred. It’s a coincident point source design featuring KEF’s proprietary “sit-anywhere” Uni-Q® technology with a driver array that includes a 25mm high frequency aluminium dome tweeter mounted in the acoustic centre of the 200mm low frequency woofer. The tweeter features KEF’s Tangerine Waveguide engineered to enhance high frequency dispersion and when combined with the Uni-Q array, creates a speaker that delivers exceptionally smooth and consistent coverage across a wide listening area. The KEF Ci200QL is constructed using weather resistant components and the Ultra-Thin Bezel and grille are treated with a UV protective finish making this speaker ideal for hi-fidelity applications in premium commercial venues such as luxury hotels, conference centres, and restaurants.

Product Features

  • UTB™ Ultra-Thin Bezel
  • 200mm (8in.) Uni-Q Driver
  • 25mm (1in.) Aluminium dome tweeter with tangerine waveguide
  • Magnetic grille
  • Paintable grille and bezel
  • Weather Resistant
  • IP64 certified

Product Specifications

  • Model:  Ci200QL
  • Series:  Q Series
  • Nominal impedance:  8
  • Sensitivity (2.83V/1m):  90dB
  • Frequency response (±6dB) open-backed:  35Hz - 34kHz
  • Nominal coverage:  115°
  • Max SPL:  107dB
  • Crossover frequency:  2.5kHz
  • Drive units
    • LF:  200mm (8in.) Uni-Q
    • HF:  25mm (1in.)
  • Recommended amplifier power:  10 - 150 W
  • Recommended high-pass filter:  40Hz
  • Product external dimensions (H x W x D):  369 x 273 x 105.9mm (14.53 x 10.75 x 4.17in.)
  • Cut-out dimensions (H x W):  330 x 234mm (12.99 x 9.21in.)
  • Mounting depth from surface:  99.8mm (3.93in.)
  • Net Weight:  2.6kg (5.77lbs.)
  • Optional rough in frame:  RIF200L
  • Optional rear enclosure:  RNC200L
  • Ideal rear volume:  60L
  • Minimum rear volume:  35L
