Ci5160RLM-THX 4x6.5" 3-Way Built-in Home Theatre Column Speaker

« return to previous page

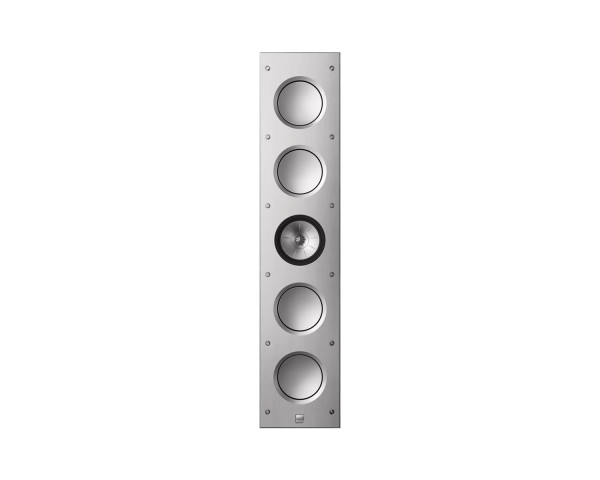

KEF Ci5160RLM-THX 4x6.5 3-Way Built-in Home Theatre Column Speaker - Main Image
KEF Ci5160RLM-THX 4x6.5 3-Way Built-in Home Theatre Column Speaker - Image 1
KEF Ci5160RLM-THX 4x6.5 3-Way Built-in Home Theatre Column Speaker - Image 2
KEF Ci5160RLM-THX 4x6.5 3-Way Built-in Home Theatre Column Speaker - Image 3
KEF Ci5160RLM-THX 4x6.5 3-Way Built-in Home Theatre Column Speaker - Image 4
Price:
RRP: £2,600.00 inc VAT
Code:
KEFCI5160RLMT
Manufacturer Code:
637203218811
Brand:
KEF

Quantity required:

Main Features

  • Metamaterial Absorption Technology absorbs 99% of the unwanted sound
  • Uni-Q® Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly
  • Four hybrid aluminium bass drivers for tight, deep, controlled bass
  • Available in Aluminium Silver, including tone matched Uni-Q and bass drivers
  • Paintable magnetic metal grille ensure the speaker seamlessly blends into the environment
  • THX Certified
Share:

Ci5160RLM-THX 4x6.5" 3-Way Built-in Home Theatre Column Speaker

The Ci5160RLM-THX is an in-wall architectural speaker featuring the 12th generation Uni-Q driver array with KEF’s groundbreaking Metamaterial Absorption Technology (MAT™), refined to maximise its full potential and proudly carries the THX Certified Ultra designation. Together with four 6.5” hybrid aluminium bass drivers, it delivers the most dynamic audio experience for home theatres.

Product Features

  • Metamaterial Absorption Technology absorbs 99% of the unwanted sound
  • Uni-Q® Acts as a single point source to enlarge the ‘sweet spot’ and disperse sound more evenly
  • Four hybrid aluminium bass drivers for tight, deep, controlled bass
  • The 5.5 mm thick precision-machined aluminium baffle is engineered to eliminate vibration and provides a stoic platform for the powerful drivers to perform at their best
  • The paintable magnetic metal grille and optional black cloth grille ensure the speaker seamlessly blends into the environment
  • THX Certified - Ci5160RLM-THX delivers ultra-high performance with true theatre sound quality for large theatres and living rooms and it is THX® Certified Ultra
  • Available in Aluminium Silver, including tone matched Uni-Q and bass drivers

Product Specifications

  • Nominal Impedance:  4Ω
  • Sensitivity (2.83V/1m):  89dB
  • Frequency Response (±6 dB) open-backed:  40 - 28kHz
  • Frequency Range (-10 dB):  32 - 45kHz
  • Nominal Coverage (degrees):  150°
  • Crossover Frequency:  640Hz, 2.6kHz
  • Drive Units:
    • LF: 4 x 160mm (6.5in.)
    • MF: 160mm (6.5in.) Uni-Q
    • HF: 25mm (1in.) vented aluminium dome with Metamaterial Absorption Technology
  • Recommended Amplifier Power:  50 - 350 W
  • Recommended High-pass Filter (Hz):  35Hz - 80Hz
  • Product External Dimensions (H X W X D):  1070 x 230 x 105.7mm (42.13 x 9.06 x 4.16in.)
  • Cut-out Dimensions (H X W):  1052 x 209mm (41.42 x 8.23in.)
  • Net Weight:  18.7kg (41.1lbs.)
  • Mounting Depth From Surface:  99mm (3.9in.)
  • Optional Rough In Frame:  RIF5160L
  • Max SPL (dB):  110dB
  • Certification:  THX® Certified Ultra
  • Wall Thickness (Maximum):  40mm (1.58in.)
  • Wall Thickness (Minimum):  6mm  (0.24in.)

What's in the Box?

  • Ci5160RLM-THX x 1
  • Metal grille x 1
  • Cutout template x 1
  • Gasket x 4
  • Hex drill tool x 1
  • Wall protection tape x 3
  • Warranty booklet
  • Manual
