CL1 Digital Mixing Console with Dante 48 Mono+8 Stereo i/p

« return to previous page

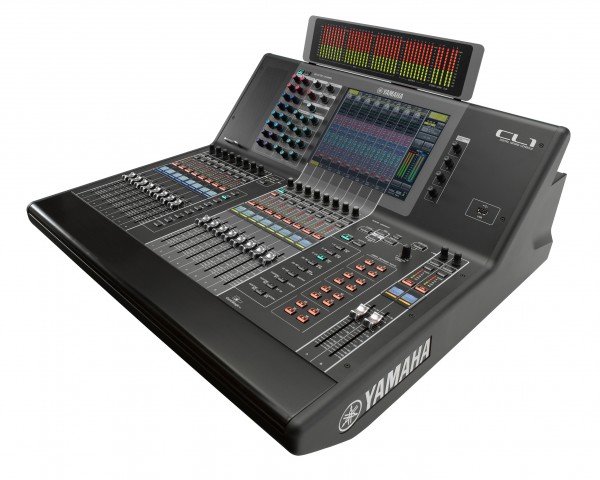

Yamaha CL1 Digital Mixing Console with Dante 48 Mono+8 Stereo i/p - Main Image

Yamaha CL1 Digital Mixing Console with Dante 48 Mono+8 Stereo i/p - Image 1

Yamaha CL1 Digital Mixing Console with Dante 48 Mono+8 Stereo i/p - Image 2

Yamaha CL1 Digital Mixing Console with Dante 48 Mono+8 Stereo i/p - Image 3

Price:: RRP: £23,330.40 inc VAT
Code:: YAMCL1
Manufacturer Code:: CL1
Brand:: Yamaha

Main Features

CL series digital mixing consoles represent a new level of refinement
Offer an evolved experience in accessible mixing
Plus sonic purity with sound shaping capabilities
Gives the most imaginative engineer unprecedented creative freedom
CL series embodies the leading standards in live sound
Most advanced, most expressive form

Yamaha CL1 48 Mono+8 Stereo i/p Digital Console

The pursuit of perfection is ongoing and will probably never end, but along the way Yamaha has introduced a number of innovations that have become industry standards offering performance and familiarity that discerning users continue to demand. By definition, “standards” are best kept as they are. With evolutionary refinements, of course.

Yamaha CL series digital mixing consoles represent a new level of refinement. They offer an evolved experience in accessible mixing, plus sonic purity with sound shaping capabilities that will give the most imaginative engineer unprecedented creative freedom. The CL series embodies the leading standards in live sound in their most advanced, most expressive form.

Dual 8-fader sections in a space-saving console that can be used alone or cascaded to another CL console for input expansion.

Product Features

CL series digital mixing consoles represent a new level of refinement
Built in Dante
Offer an evolved experience in accessible mixing
Plus sonic purity with sound shaping capabilities
Gives the most imaginative engineer unprecedented creative freedom
CL series embodies the leading standards in live sound
Most advanced, most expressive form

Product Specifications

General

Sampling frequency rate
- Internal: 44.1kHz / 48kHz
- External: 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm), 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
Signal delay: Less than 2.5ms, OMNI IN to OMNI OUT, Fs=48kHz
Fader: 100mm motorized, Resolution=1024steps, +10dB to -138dB, -∞dB all faders
Frequency response: +0.5, -1.5dB 20Hz-20kHz, refer to +4dBu output @1kHz, OMNI IN to OMNI OUT
Total harmonic distortion: Less than 0.05% 20Hz-20kHz@+4dBu into 600Ω, OMNI IN to OMNI OUT, Input Gain = Min.
Hum & Noise: -128dBu typ., Equivalent Input Noise, Input Gain=Max., -88dBu, Residual output noise, ST master off
Dynamic range: 112dB typ.: DA Converter / 108dB typ.: OMNI IN to OMNI OUT, Input Gain = Min.
Crosstalk: -100dB*1, adjacent OMNI IN/OMNI OUT channels, Input Gain = Min.
Power requirements: US/Canada: 120V 60Hz, Japan: 100V 50/60Hz, China: 110-240V 50/60Hz, Korea: 220V 60Hz, Other: 110-240V 50/60Hz
Power consumption: 170W: Internal Power Supply / 200W: Simultaneous use of Internal PSU and External PW800W
Others: Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
