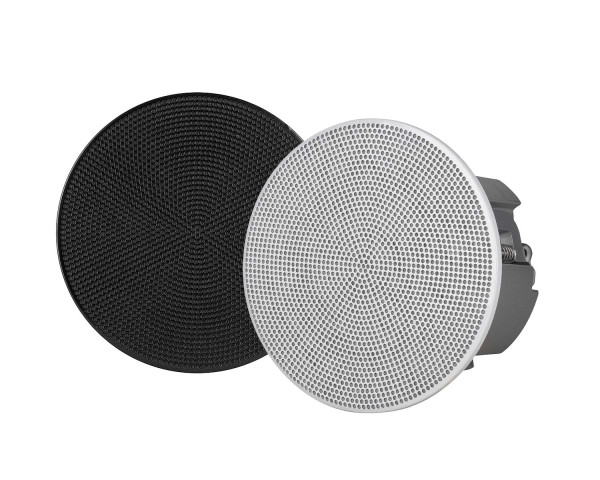

CMR 30 2.5" 2-Way Ceiling Speaker 15W 16Ω Black/White

« return to previous page
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Main Image
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Image 1
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Image 2
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Image 3
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Image 4
RCF CMR 30 2.5 2-Way Ceiling Speaker 15W 16Ω Black/White - Image 5
Price:
RRP: £188.40 inc VAT
Code:
RCFCMR30
Manufacturer Code:
13100111
Brand:
RCF

Quantity required:

Main Features

  • 15W RMS power handling
  • 104 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • Omnidirectional directivity
  • 2.5" full range transducer
  • Includes two magnetic grilles, black and white
Share:

CMR 30 2.5" 2-Way Ceiling Speaker 15W 16Ω Black/White

CMR 30 is a full-range, in-ceiling speaker designed to meet a wide variety of needs, from delivering clear background music in retail spaces to ensuring intelligible speech in meeting rooms. Thanks to its elegant, discreet design and accurate details, this multipurpose speaker effortlessly pairs with any building’s aesthetic. The high-quality transducer guarantees precise reproduction across the entire frequency band and provides impressive sound pressure levels for such a compact loudspeaker. Additionally, the bottom passive radiator enhances low frequencies, making it ideal for music playback. Installation is straightforward using two clamps, and the magnetic grille—supplied in both white and black— offers a seamless finish.

Product Features

  • 15W RMS power handling
  • 104 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • Omnidirectional directivity
  • 2.5" full range transducer
  • Passive radiator for low frequencies emphasis
  • Aluminum body
  • 2 stainless steel magnetic grilles included
  • White - RAL 9003 and Black - RAL 9005
  • Connection on push type terminals

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  70 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  104 dB
  • Coverage angle:  130°
  • System Sensitivity:  86 dB

Power section

  • Amplification:  Full Range
  • Nominal Impedance:  16 ohm
  • Power Handling:  15 W RMS
  • Peak Power Handling:  60 W PEAK
  • Recommended Amplifiers:  DMA 504, DMA 162, DMA 82, DMA 162P
  • Transducers Woofer:  1 x 2.5'' neo, 1.0'' v.c

Input/Output section

  • Input connectors:  Push Type Terminals
  • Output connectors:  Push Type Terminals

Standard compliance

  • Safety agency:  CE compliant

Physical specifications

  • Cabinet/Case Material:  Aluminium
  • Grille:  Stainless Steel

Size / Weight

  • Depth:  68 mm / 2.68 inches
  • Recessed Depth:  61 mm / 2.4 inches
  • Diameter:  109 mm / 4.29 inches
  • Cut out diameter:  86 mm / 3.39 inches
  • Weight:  0.37 kg / 0.82 lbs
