CMR 60T W 6" 2-Way Ceiling Speaker 40W 100V White

« return to previous page

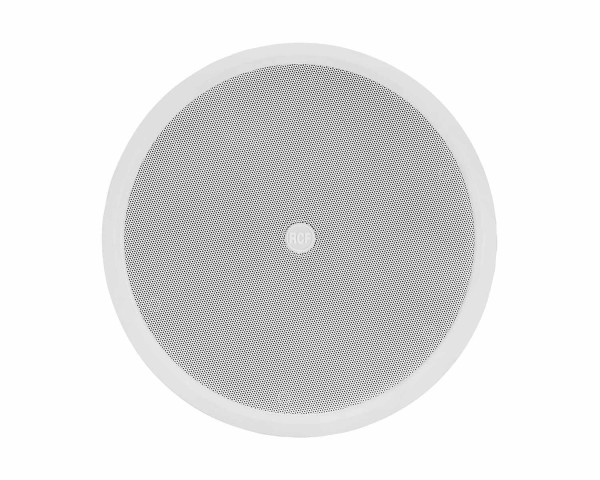

RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Main Image
RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Image 1
RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Image 2
RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Image 3
RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Image 4
RCF CMR 60T W 6 2-Way Ceiling Speaker 40W 100V White - Image 5
Price:
RRP: £234.00 inc VAT
Code:
RCFCMR60TW
Manufacturer Code:
13100045
Brand:
RCF

Quantity required:

Main Features

  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 130° constant directivity conical coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
Share:

CMR 60T W 6" 2-Way Ceiling Speaker 40W 100V White

CMR 60T is a multipurpose two-way in-ceiling speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, CMR 60T pairs any building's aesthetic. The high-quality transducers, aligned in a coaxial configuration, guarantees a precise music reproduction of the entire frequency band and provides impressive sound pressure levels for such a compact enclosure. Installation is easy with three long travel clamps. The magnetic grille allows immediate access to the power selector on the front shell: the line transformer provides 80W full power on 70V and 100V constant voltage lines, and five different power levels.

Product Features

  • 80W RMS power handling
  • 114 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 130° constant directivity conical coverage angle
  • 6.5" high power woofer
  • 1" neodymium dome tweeter
  • Self extinguishing plastic body and metal backcan
  • Steel magnetic front grille
  • 4 pole EUROBLOCK connector (audio input and parallel link output)
  • 5 different power levels selectable

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB):  70 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  114 dB
  • Coverage angle:  130°
  • System Sensitivity:  89 dB
  • Power section Nominal Impedance:  8 ohm
  • Power Handling:  80 W RMS
  • Peak Power Handling:  320 W PEAK
  • Recommended Amplifier:  160 W
  • Crossover Frequencies:  2500

Transducers

  • Dome Tweeter:  1.0'' neo, 1.0'' v.c
  • Woofer:  6.5'', 1.2'' v.c

Input/Output section

  • Input connectors:  Euroblock
  • Output connectors:  Euroblock
  • Constant Voltage Transformer:  70/100 V
  • Power selection 1:  80 W - 125 ohm
  • Power selection 2:  40 W - 250 ohm
  • Power selection 3:  20 W - 500 ohm
  • Power selection 4:  10 W - 1000 ohm
  • Power selection 5:  5 W - 2000 ohm

Standard compliance

  • CE marking:  Yes

Physical specifications

  • Cabinet/Case Material:  ABS
  • Hardware:  Steel backcan
  • Grille:  Steel
  • Colour:  White - RAL 9003

Physical & Dimensions

  • Depth:  202 mm / 7.95 inches
  • Recessed Depth:  193 mm / 7.6 inches
  • Diameter:  300 mm / 11.81 inches
  • Cut out diameter:  260 mm / 10.24 inches
  • Weight:  4.5 kg / 9.92 lbs
