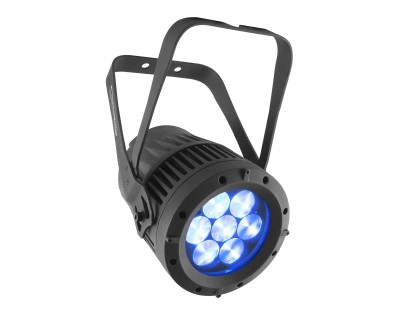

COLORado 2 QUAD ZOOM TOUR RGBW LED PAR Fixture

Product Features

• RGBW color mixing via DMX or manually
• Zoom control via DMX or manually
• Color temperature presets 3200 to 10000 K
• Built-in auto and custom programs recalled via DMX and Master/Slave
• 16-bit dimming of individual colors as well as master dimmer
• Selectable, smooth dimming curves for programming versatility
• Color macros with included speed adjustment
• Double-bracketed yoke doubles as a floor stand
• Neutrik powerCON power input/output connections
• 3- and 5-pin DMX input/output connections
• LED display with passcode protection

Product Specifications

Optical

• Light Source:  14 LEDs (quad-colour RGBW) 15 W, (985 mA), 50,000 hours life expectancy
• Colour Temperature (range):  2800 to 10000 K
• Beam Angle:  6° to 30°
• Field Angle:  11° to 43°
• Zoom Angle:  11° to 43°
• Illuminance (11°):  8,000 lux @ 5 m
• Illuminance (43°):  695 lux @ 5 m
• PWM Frequency:  1,200 Hz

Dynamic Effects

• Colour Macros:  20 macros
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Strobe Rate:  0 to 20 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature pre-sets:  Yes
• Dim Modes: 5Dim Curves:  4
• Built-in Automated Programs:  Yes
• Customizable Programs:  Yes
• Recall Custom Programs:  Yes

Physical & Dimensions

• Dimensions:  283 x 236 x 348 mm
• Weight:  8.1 kg
• Exterior Colour:  Black
• Housing Material:  aluminium die-cast
• Accessory Holder/Gel Frame Size:  229 mm

Connections

• Power Connection:  Edison (Local) plug to Neutrik powerCON
• Power Input:  Neutrik powerCON
• Power Output:  Neutrik powerCON
• Data Connectors:  3- and 5-pin XLR
• Cable Length (power):  1.5 m

Control

• Control Protocol:  DMX
• DMX Channels:  3, 4, 5, 6, 7, 12 or 17
• Modes/Personalities:  10 personalities (HSV, ARC.1, AR1.D, ARC.2, AR2.D, AR2.S, AR2.Z, TOUR, TR16, STD.Y)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
• Power and Current:  205 W, 1.71 A @ 120 V, 60 Hz
• Power and Current:  208 W, 0.99 A @ 208 V, 60 Hz
• Power and Current:  212 W, 0.93 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, METIP Rating:  IP20, dry location

What’s in the Box?

• COLORado 2-Quad Zoom Tour
• Neutrik powerCON power cord
• Gel frame holder (9 in/229 mm accessories)
• Gel frame
